Convert CAD/DWG to PDF Using Power Automate

Muhimbi Document Converter version 8.3 and above supports the conversion of CAD files to PDF. The key features of CAD conversion include:

  1. Full 2D and 3D support.

  2. Highly configurable (output paper size, margins, layouts/views to convert)

  3. Automatic and intelligent recoloring of drawings, e.g. switch the background to black, white, or any other color without losing visibility of elements that were already using that color. Full black and white support is available as well.

  4. Conversion of individual layouts or all layouts while skipping empty and invalid ones.

  5. Automatic detection of paper orientation.

As the converter is part of our highly scalable [Document Converter Server Platform][], it automatically benefits from all its features, including reliability, scalability, a watermarking engine, cross-platform support, a web services-based API, PDF security, SharePoint integration, Nintex workflow integration, Java support, InfoPath attachments, Windows Azure, and more.

Below are three different images of the same drawing after conversion to PDF, but with different recoloring options.

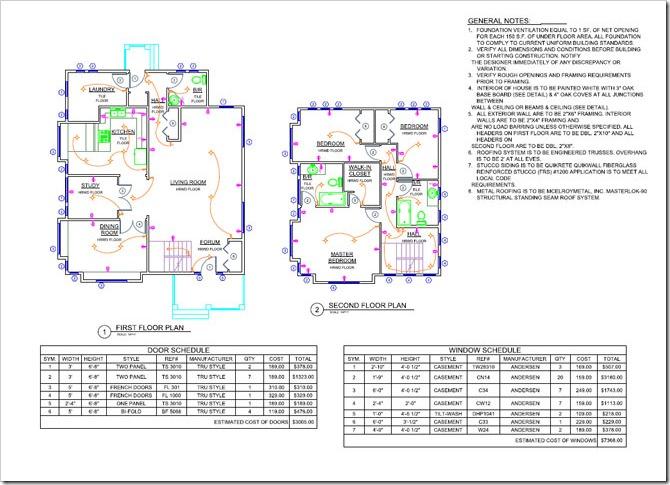

CAD Sample - White Back

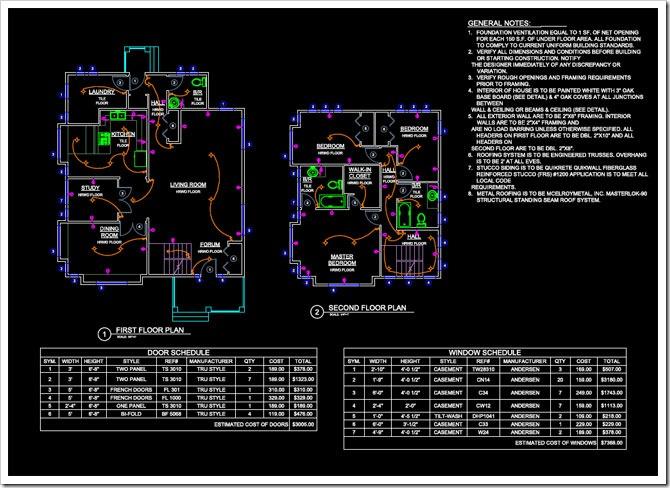

CAD Sample - Black Back

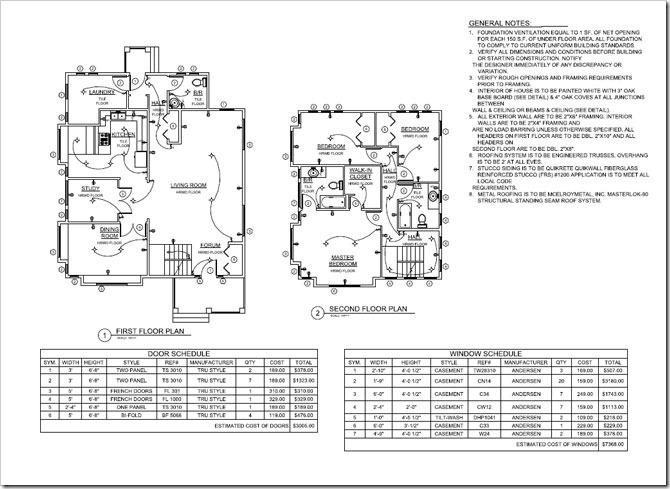

CAD Sample - Black and White

You can also use third-party CAD converters in combination with Muhimbi Document Converter.

Using Power Automate to Convert CAD Files to PDF

This example takes you through converting CAD files to PDF.

Before beginning, make sure the following prerequisites are in place:

  • A Power Automate subscription.

  • Gateway for Power Automate (installed and configured).

  • A full or free trial subscription to [Muhimbi Document Converter for Power Automate][].

  • Appropriate privileges to create Power Automate flows.

  • Working knowledge of Power Automate.

1: Creating a Flow

Create a flow and find the When a file is created or modified (properties only) trigger, which will allow you to start the flow when adding or modifying a property of a file into a folder.

In the action, specify the path to the SharePoint Online library to monitor for new items

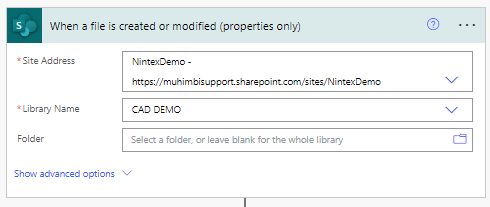

create a flow

2: Getting the File Content

Add the SharePoint Get file content action to the Power Automate canvas. In the Site Address field, specify the path to the SharePoint Online site collection that holds the file. In the File Identifier field, specify Identifier, which is the output from the When a file is created or modified (properties only) action.

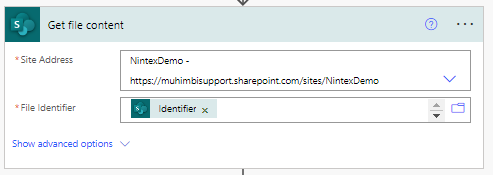

get file content

Step 3: Converting a CAD Drawing to PDF

Add the Muhimbi Convert CAD drawing to PDF action to the Power Automate canvas and configure it according to the details below. If your source documents are already in PDF format, this step isn’t necessary.

In the Source file name field, add File name with extension, which is the output from the When a file is created or modified (properties only) action. In the Source file content field, add Get file content.

Leave the other options as their defaults. However, you may want to change the advanced option to match the details below.

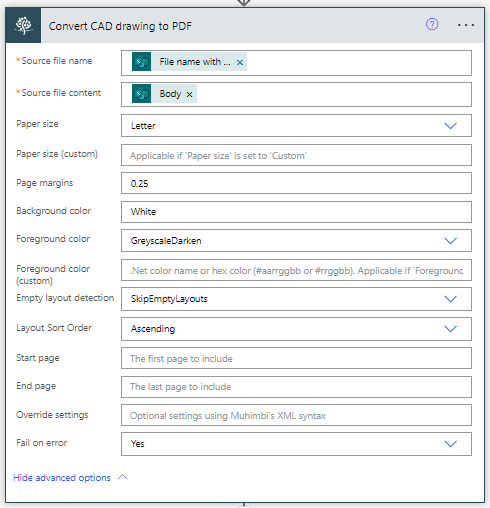

convert cad drawing to pdf

Name Key Description
Source file name source_file_name Name of the source file, including extension
Source file content source_file_content Content of the file to convert
Paper size paper_size Paper size for the output
Paper size (custom) paper_size_custom Applicable if ‘Paper size’ is set to ‘Custom’
Page margins page_margins E.g. ‘1.5cm’ (for uniform) or ‘0.5in, 0.25in, 0.5in, 0.25in’ (for non-uniform) margins
Background color background_color .NET color name or hex color (#aarrggbb or #rrggbb)
Foreground color foreground_color The foreground effect or color
Foreground color (custom) foreground_color_custom .NET color name or hex color (#aarrggbb or #rrggbb). Applicable if ‘Foreground color’ is set to ‘Custom’
Empty layout detection empty_layout_detection_mode Select which layouts should be skipped
Layout Sort Order layout_sort_order Specify the sort order in which the layouts are converted
Start page start_page The first page to include
End page end_page The last page to include
Override settings override_settings Optional settings using Muhimbi’s XML syntax
Fail on error fail_on_error Fail on error

Step 4: Creating a File

Add the Create file SharePoint action to store the PDF document in the File Explorer action library.

Note: You’ll need to configure a gateway to write files to your file system, as mentioned in the prerequisites section.

In the File Name field, add Base file name.pdf, which is the output variable of the Convert CAD drawing to PDF action. In the File Content field, add Processed file content, which is the output variable of the Convert CAD drawing to PDF action.

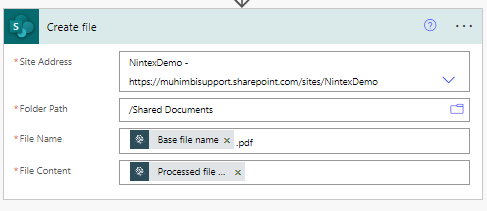

publish workflow

Now, publish your flow and upload a file (e.g. a CAD drawing) to the folder that’s monitored by the configured SharePoint trigger. After a short wait, you’ll find the PDF document in the destination document library or folder in SharePoint.
