Add Watermark to MS Word Files Using Power Automate

In this guide, you’ll learn how to automatically add a watermark to an MS Word document using Power Automate. You can add text, rectangles, images, PDF files, QR codes, barcodes, and other shapes as watermarks to your Word file.

This specific example adds a text watermark to a DOCX file located in Dropbox and then creates a new version of the watermarked file in another location within Dropbox. You can use this example to watermark other standard MS Office formats like Excel and PowerPoint (see file formats we support).

Additionally, while this example uses Power Automate to watermark a Word file in Dropbox, you can also add watermarks to your file in another destination, like SharePoint, Google Drive, OneDrive, or any platform supported by Power Automate. Customize our example by adding additional automation, like sending a watermarked file via email.

Prerequisites

Before building the workflow, ensure all prerequisites are in place.

  • A full or free trial subscription for [Muhimbi Document Converter for Power Automate][]

  • Appropriate privileges to create flows

  • A Dropbox account connected with Power Automate

Using Power Automate to Add Text Watermarks to Word Files

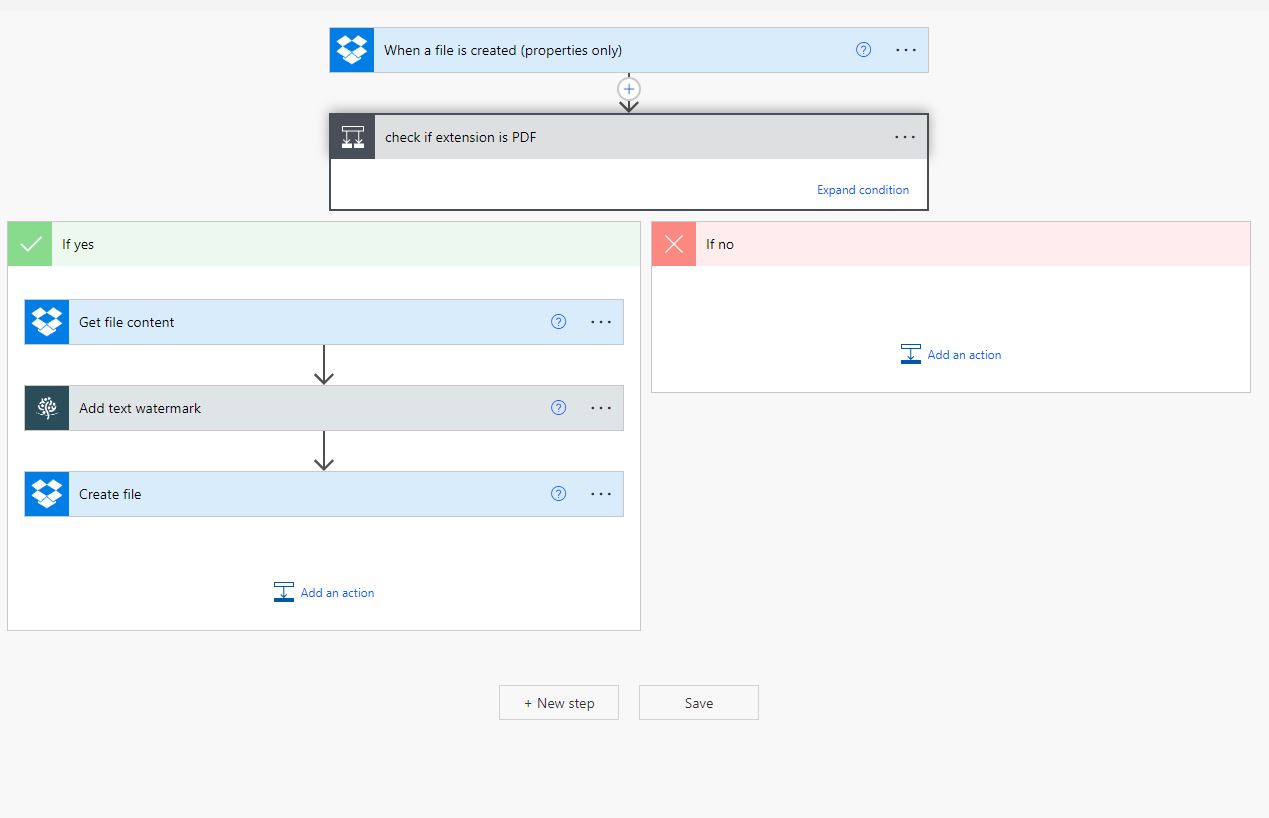

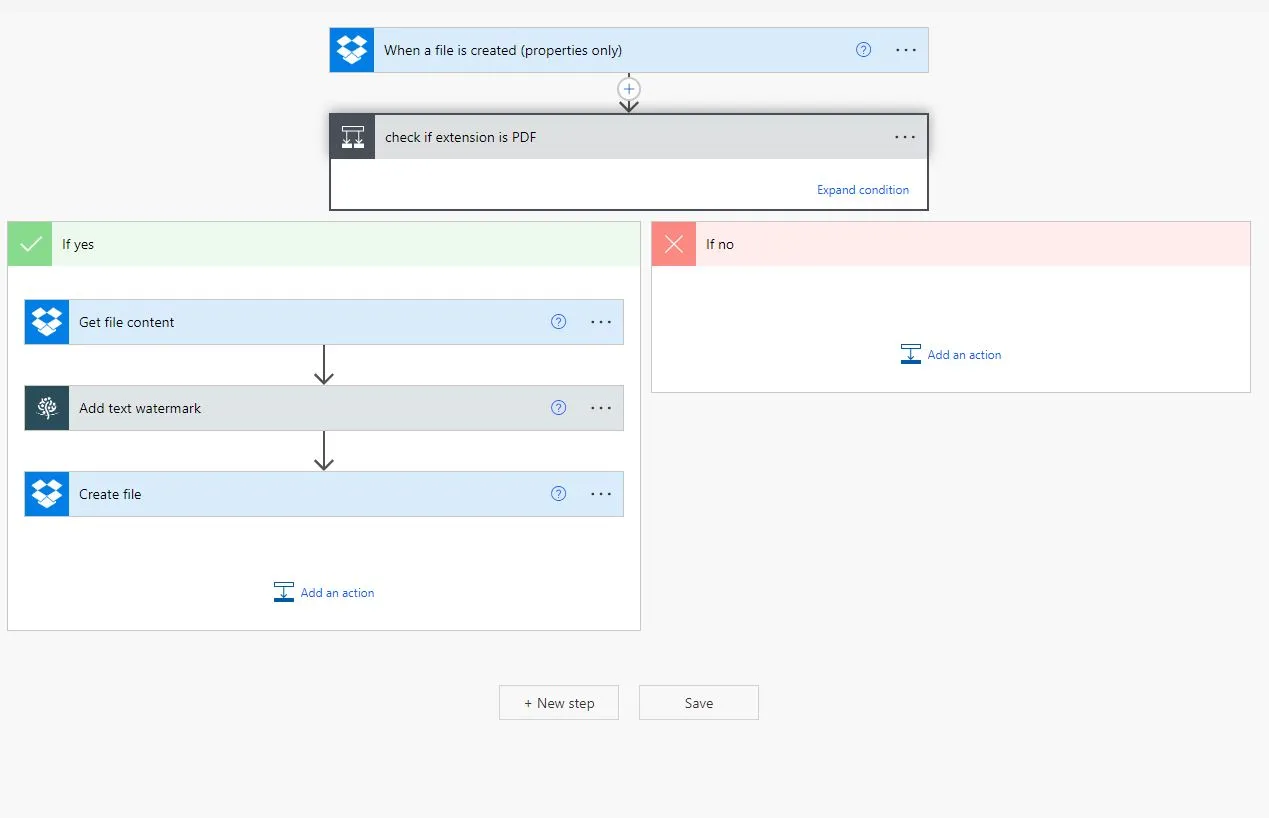

The following image shows a high-level view of how to add text watermarks to Word files with Document Converter for Power Automate.

add watermark workflow

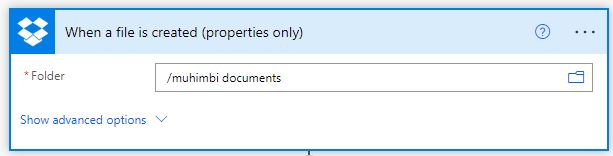

Specifying the Folder

Insert the When a file is created (properties only) flow action for Dropbox, and in the Folder field, specify /muhimbi documents.

when a file is created

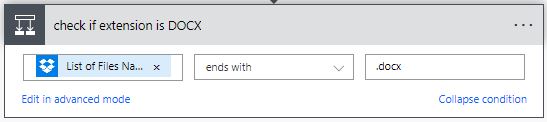

Inserting a Condition

Insert the Condition flow action, and specify List of Files Names, which is the output of the When a file is created (properties only) action. It ends with .docx.

condition flow

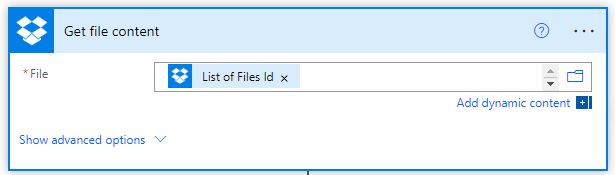

Getting the File Content

If the step above evaluates to true, add Get file content for the Dropbox action in the If yes box. In the File field, enter List of Files Id, which is the output of the When a file is created (properties only) action.

list of files id

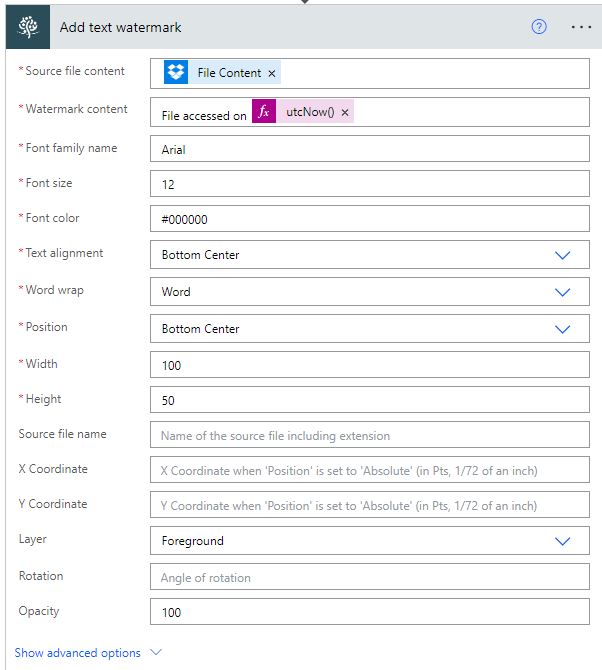

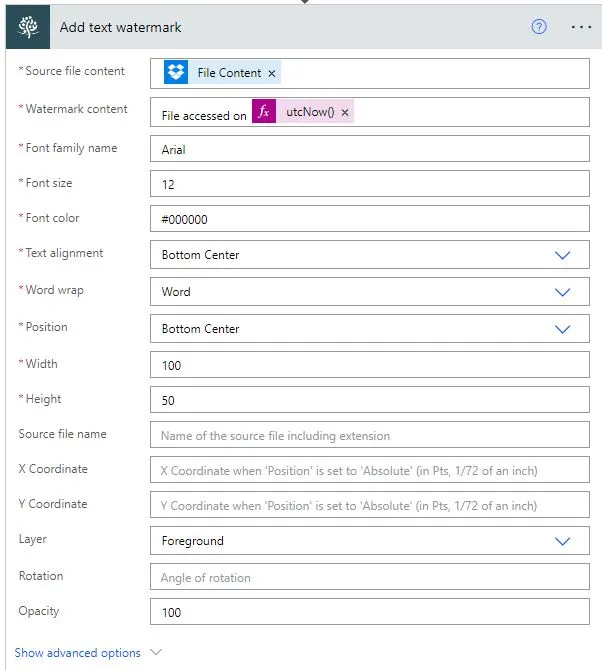

Adding the Text Watermark

Insert the Muhimbi Add text watermark action. This workflow action can be used to apply text to the foreground or background of one or more pages in the document with full control over the font, style, size, and color. The text stored in the content field may contain embedded field codes, such as the date or current page number. Power Automate expressions are also supported, which makes it possible for dynamic information stored in workflow variables or in an item’s columns to be embedded in the watermark.

Add the following mandatory fields to the action:

  • Source file content — Specify File Content, which is the output of the Get file content action.

  • Watermark content — Enter the text you want to be displayed in your watermark.

  • Font size — Enter the watermark font size.

  • Font color — Enter the watermark font color.

  • Text alignment — Select the text alignment of the watermark.

  • Word wrap — Select the word wrap style for the watermark.

  • Position — Select the position in the image where you want the watermark to be displayed.

  • Width —100

  • Height — 50

add text watermark

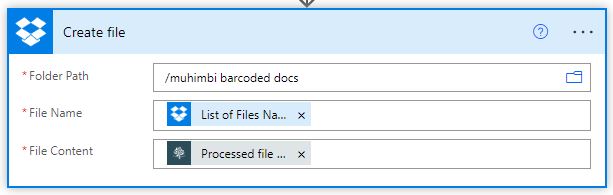

Creating a File

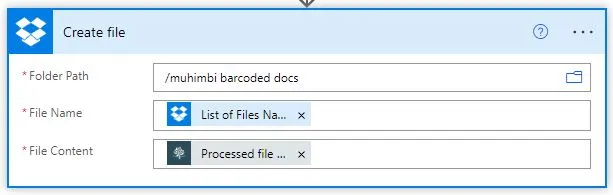

Insert the Dropbox Create file action after the Add text watermark action.

The action has three main parameters:

  • Folder Path — The path of your destination folder.

  • File NameList of Files Names, which is the output of the When a file is created (properties only) action.

  • File ContentProcessed file content, which is the output of the Add text watermark action.

processed file content

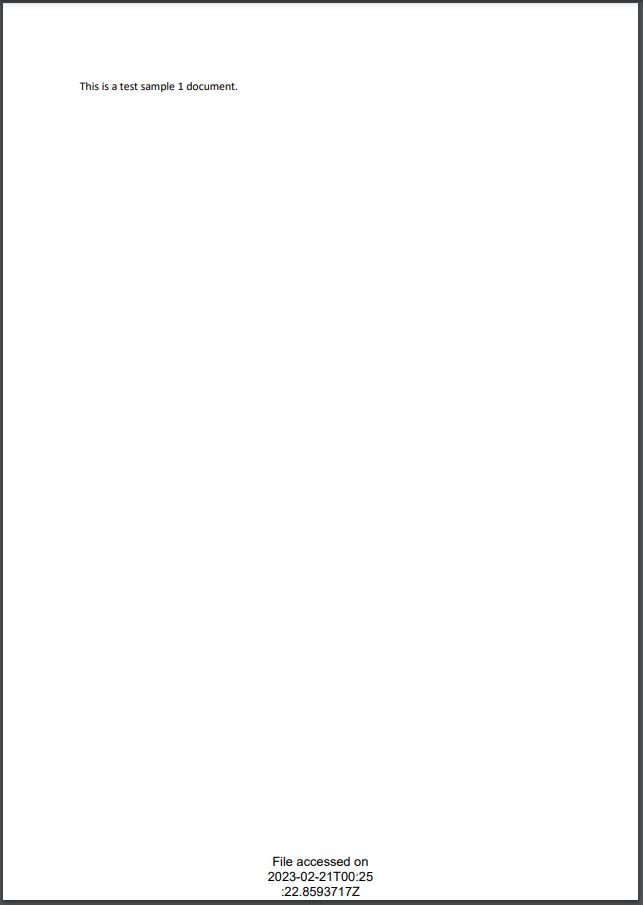

You can test this workflow by uploading an MS Word (.docx) document to the Dropbox location. This will trigger the flow after a minute and create a new document with a watermark.

watermark word file workflow
