Integration Task: Web Service

With the Web Service task type, you can configure processes to post data to a web service as a SOAP message or to a parameterized query string, allowing Integrify to push data to other systems.

The result of the post can determine the path of a workflow. At any point in an Integrify process, customers can:

  • Push or pull data to and from external systems (Remedy, Salesforce, SAP, etc)

  • Instantly (or on a scheduled bases) confirm data receipt and pass back additional information

  • Spawn additional tasks in the Integrify® process based on successful data transfer

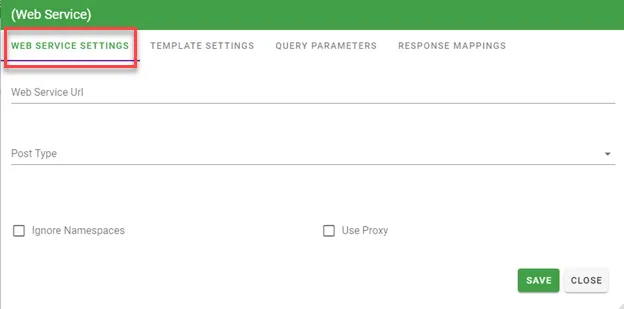

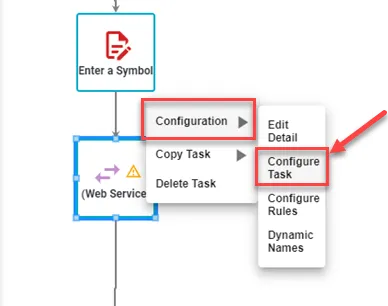

Select Configure Task and you will be presented with the following to configure the Web Service task:

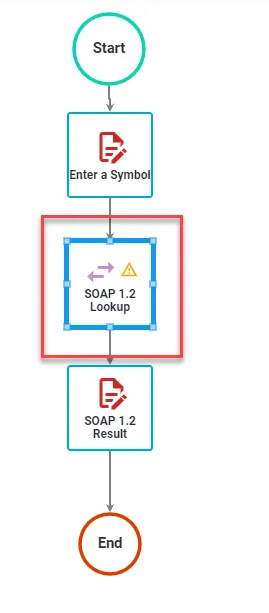

In this example, we are going to enter a stock symbol into a form and then retrieve the stock quote and present the result into a 2nd form called ’SOAP 1.2 Result ’:

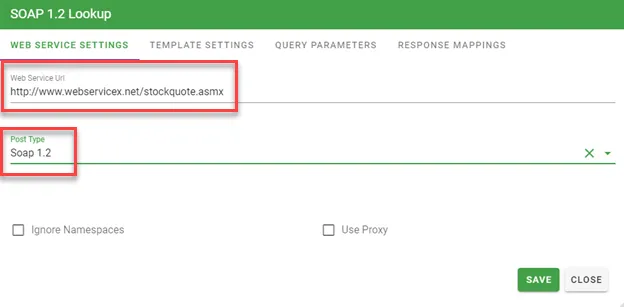

When configuring the Web Service task, we have made the following definitions:

The table below explains the options for configuring any Web Service task configuration:

Web Service Settings tab:

Attribute | Options | Required | Description
h1: “h1 goes here” noTitleSuffix: true section: developers order: 1 sidenav_label: SideNav Label —|—|—|—
Web Service URL | Link | Yes | The URL from which to retrieve data
Post Type | Http Post, Htpp Get, Soap 1.1, Soap 1.2 | Yes | Choose your Post Type based on the requirements of the web service you are connecting to.
Ignore Namespaces | Yes/No | Yes | This will default to ‘No’. If Yes, the namespace attributes will be stripped from XML results for easier parsing
Use Proxy | Yes/No | Yes | This will default to ‘No’.

Template Settings tab:

Attribute | Options | Required | Description
h1: “h1 goes here” noTitleSuffix: true section: developers order: 1 sidenav_label: SideNav Label —|—|—|—
Enter template for requests (soap xml, form post string or query string) | | Yes | Query string, Post String or SOAP
Enter the xml format of the expected response | | Yes | XML format of the expected response
Enter the xml format of the expected inbound post | | | If the task is set to be posted back to, enter the XML format that will be posted

Query Parameters tab:

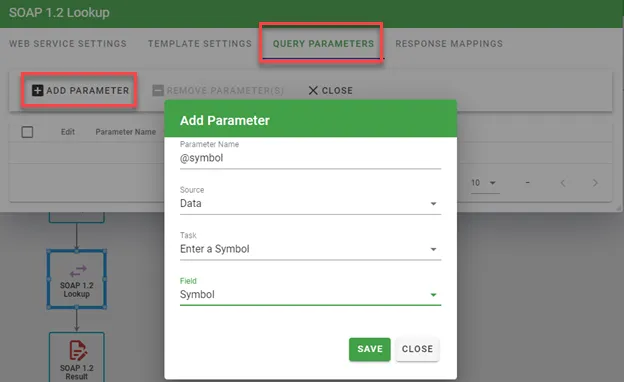

Here, you will enter your parameter to be mapped to a task in your process. See the example here:

Response Mappings tab:

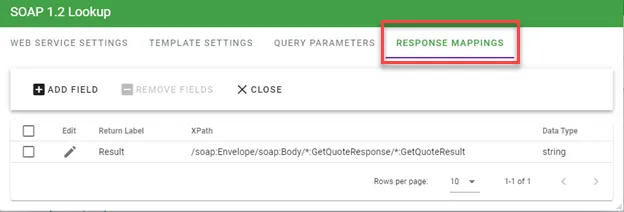

Here, you will enter your Return Label , the Path and Data Type to be used.
