PSPDFKit 3.0 for Android

Illustration: PSPDFKit 3.0 for Android

Today we are happy to announce the release of PSPDFKit 3.0 for Android, finally 😃 bringing support for PDF Forms to our Android framework! Version 3.0 is a huge update, coming with a large set of performance and dependency updates for an even smoother user experience while making sure the library is future-proof.

Forms

Forms are an integral part of the PDF workflow. After offering form support on iOS since 2013, we took everything we learned about PDF Forms and reimagined our Forms components with a more robust, cross platform foundation. The new Forms architecture already shipped on iOS with PSPDFKit 6.5 for iOS and will soon be available for PSPDFKit for Web. By using a common foundation across platforms, we can ensure a more robust codebase and fixes propagating across platforms much quicker than before.

For you, this means that you can easily add support for PDF Forms and features like push buttons, checkboxes, radio buttons, combo boxes, list boxes and text fields to your app. Our extensive set of UI controls for all supported form elements will help you to provide an excellent user experience without having to deal with the messy details of PDF Forms.

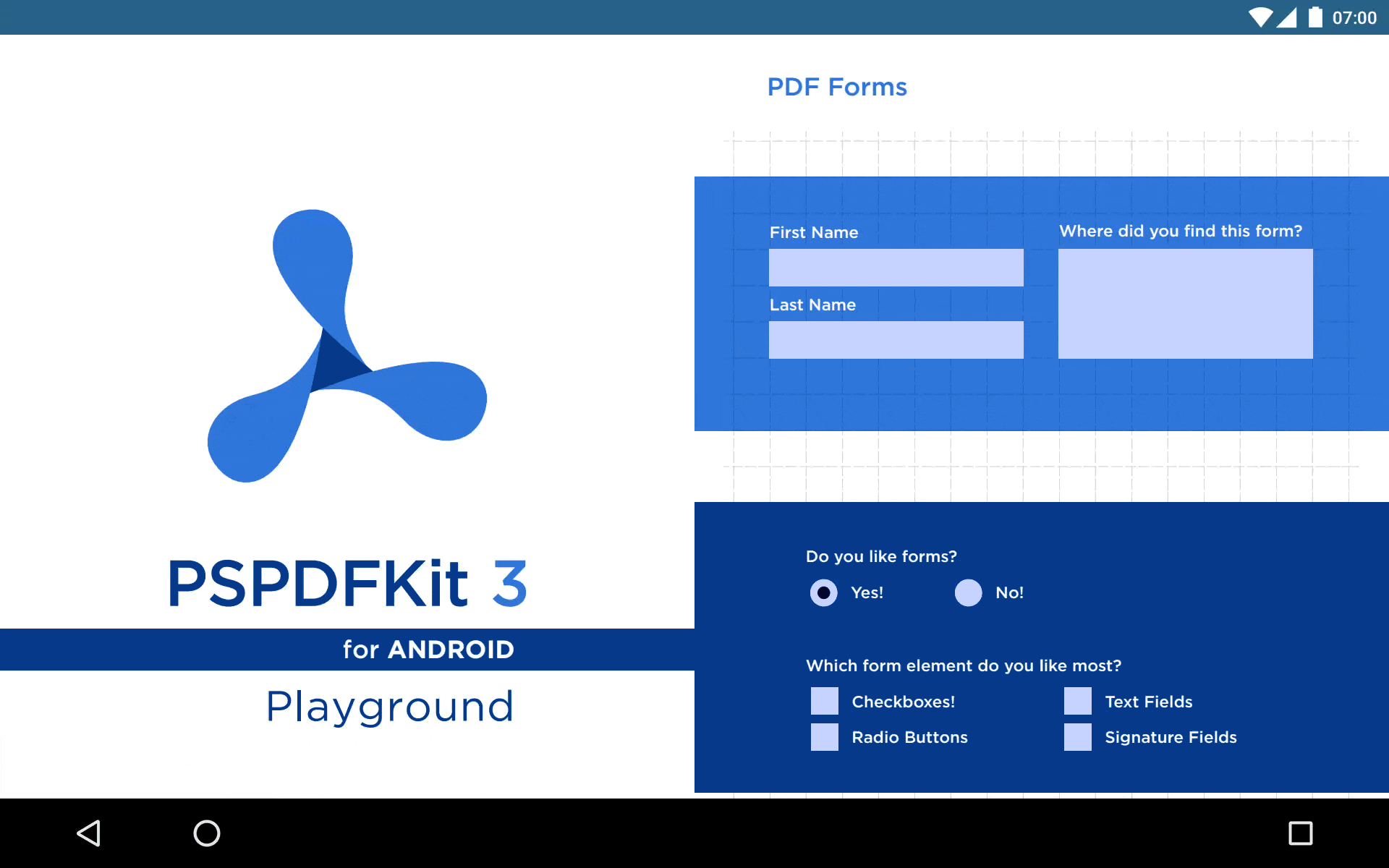

Form filling

And if you still want to: All of our form components and UI elements are backed by our powerful forms API, which gives you the ultimate control to build your own features around forms.

Easy Form Filling

The new FormEditingBar is here to make form filling as easy as possible. It is displayed at the bottom of the screen or on top of the active soft keyboard when editing forms. It features buttons for navigating form elements in the tab order which is calculated for you according to contents of your PDF.

We’ve also added extensive support for keyboard navigation – like tabbing between form fields, toggling form value with the space key, etc. It is even possible to fill out forms solely by using hardware keyboard — without touching the screen at all.

New PDF Actions

We are introducing support for additional PDF actions. Specifically, we’ve added support for HideAction, used for toggling annotation visibility flags, as well as SubmitFormAction and ResetFormAction. Our default ActionResolver has been revamped with an ability to execute chained actions.

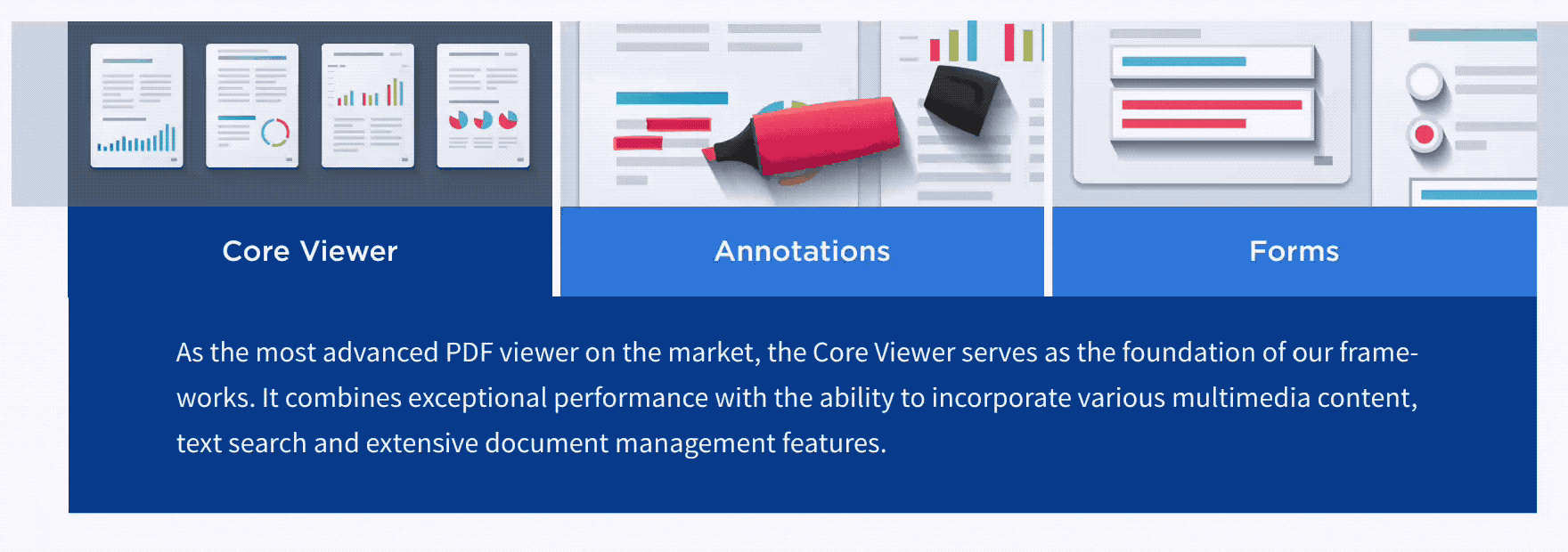

Hide action

Dynamic Configuration Changes

Many of our users have been asking for the ability to change our framework configuration at runtime. The main use case is switching themes (night mode) or changing page scrolling parameters. Previously, you needed to manually restart PdfActivity with a new configuration to implement this.

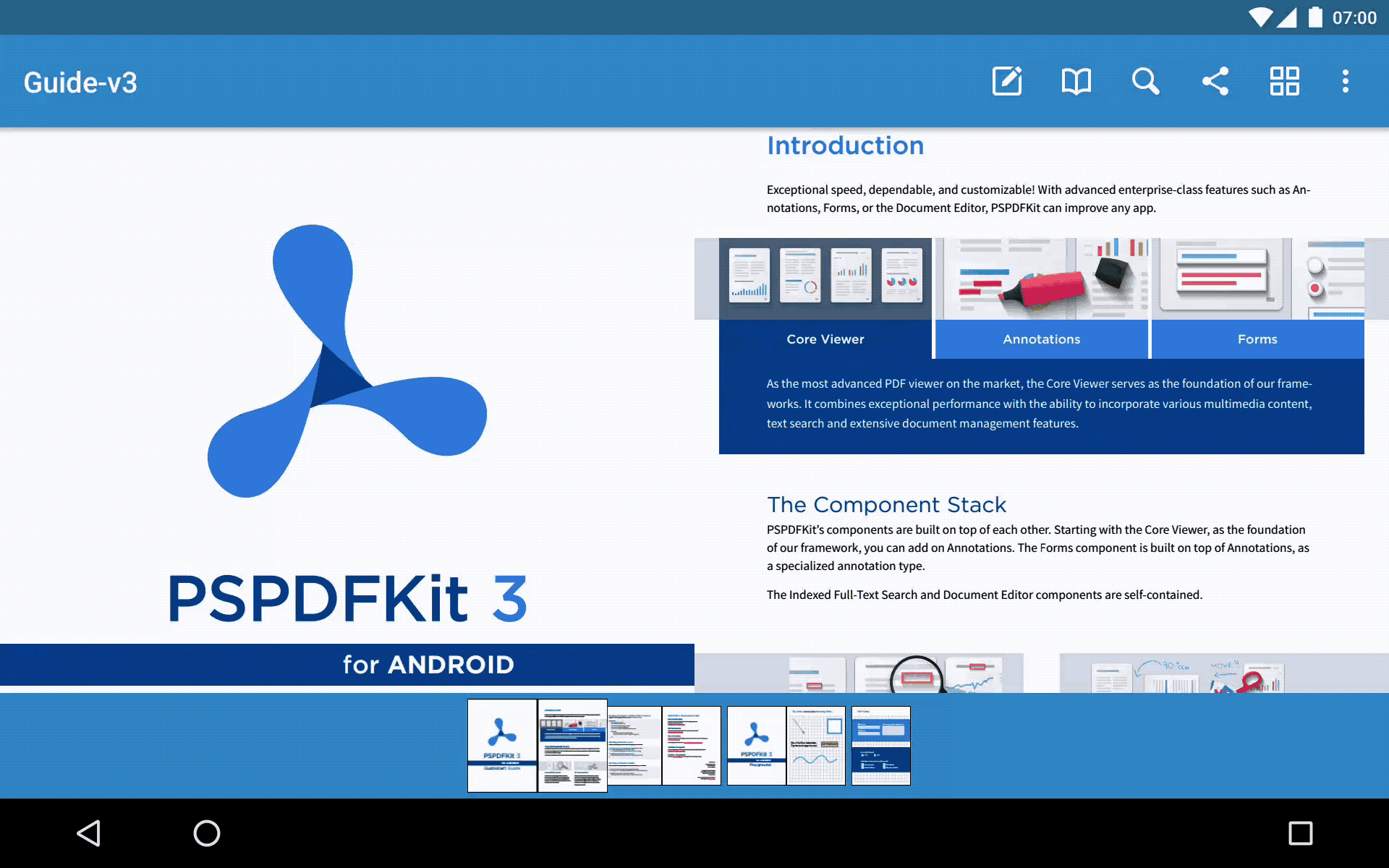

Night mode

To apply a new configuration, simply call PdfActivity#setConfiguration, which will restart the PdfActivity and restore its state for you. Our configuration builders can now be initialized from an existing configuration for you to change existing properties easily.

For more information, see DynamicConfigurationExample for an example of how to replace configuration in a PdfActivity at the runtime. When you are using custom activity with a PdfFragment, see CustomFragmentDynamicConfigurationExample for an example of replacing configuration in that case.

Simplified Framework Initialization

We’ve streamlined the process of initializing PSPDFKit. The framework will now initialize automatically if you add the license key to your AndroidManifest.xml via a <meta-data> tag:

<application>

    <meta-data
        android:name="pspdfkit_license_key"
        android:value="@string/PSPDFKIT_LICENSE_KEY"/>

    ...
</application>

As a consequence we’ve now dropped the license as a required parameter from PdfActivityConfiguration and PdfConfiguration.

Using the <meta-data> tag is the new recommended approach, but if you require to do initialization manually, check out our PSPDFKit 3.0 migration guide which describes how to do that.

Finger on the Pulse

PSPDFKit is a living framework, with many customers depending on its longevity. Hence, we used the 3.0 release to rework large parts of PSPDFKit in order to keep up that promise. You can read about all the details in our 3.0 migration guide – here’s an overview of the biggest changes.

  • We improved naming of classes (PSPDF prefix be gone!) and switched capitalization to be more in line with other Android and Java APIs. For example, PSPDFActivity is now called PdfActivity and PSPDFDocument is now PdfDocument.

  • We moved our static openDocument methods from the PSPDFKit class directly onto the PdfDocument.

  • RxJava was updated to version 2. This greatly improves performance, stability, and type safety of PSPDFKit.

  • And many more minor improvements to our API.

Small Improvements

With such a big release, it’s only natural that we also fixed/improved many minor things. To name a few:

  • Free-text annotations now use autocorrection.

  • Bitmap in stamp annotation can now be re-setted via StampAnnotation#setBitmap.

  • We lowered memory usage and improved stability in low memory situations.

  • We fixed few small issues full-text search issues in PdfLibrary concerning FTS5 SQLite search engine.

  • We fixed many corner cases in view state restoration.

This blog post covers just a small fraction of all the things we packed into this release. If you’re interested in all the details, see the full list of changes in PSPDFKit 3.0 for Android.
