Showing Popovers from Ornaments on visionOS

Vishnu Dutt
Illustration: Showing Popovers from Ornaments on visionOS

Our PDF SDK supports Apple’s visionOS alongside iOS and Mac Catalyst. While adding this support, we encountered some challenges related to displaying UIKit popovers from ornaments built in SwiftUI. We have a UIKit view controller, PDFViewController, which displays PDF documents and is shown with different tools in the navigation bar. We also have existing code for iOS that shows modal views for some of these tools as popovers. To display the tools in ornaments on visionOS, we wanted to reuse this existing code.

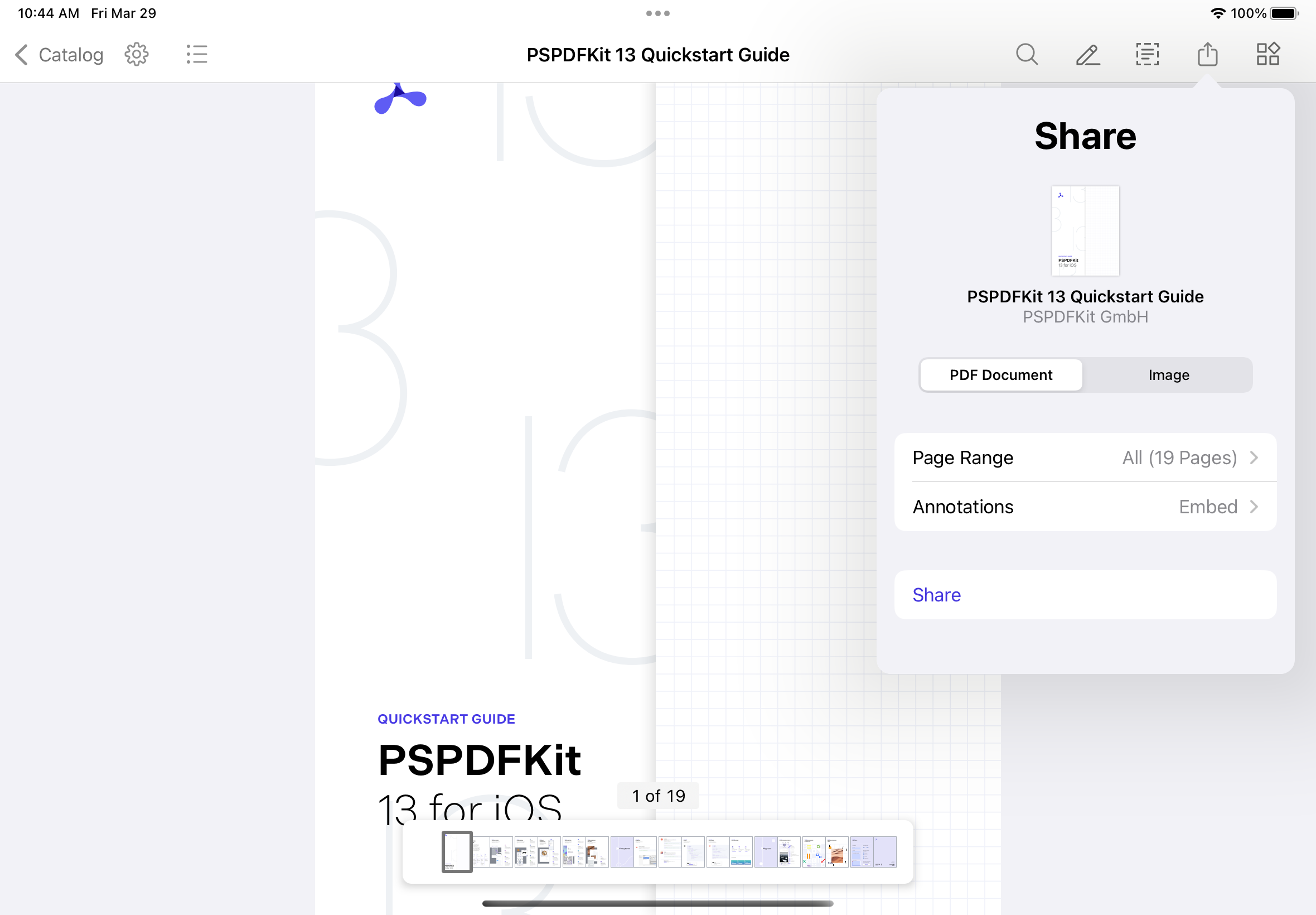

iOS toolbar showing the share popover

In this blog post, we’ll delve into the challenges we faced when implementing this. But first, we’ll provide a quick overview of ornaments on visionOS.

Introduction to Ornaments and Different Alignments

On visionOS, an ornament floats alongside an app’s window, holding extra controls and information without obstructing the main content.

Ornaments can appear on any side of a window. Inside an ornament, you can place buttons, sliders, or any other controls your app requires. The system already uses ornaments for elements like toolbars and tab bars. However, you can also build your own custom ornaments for unique features in your app.

Default visionOS Ornaments

By default, visionOS displays toolbars and tab bars as ornaments. Here’s an example of how they’re displayed:

struct ViewWithDefaultToolbarAndTabView: View {
    var body: some View {
        TabView {
            Text("Toolbar")
                .tabItem {
                    Button("Share", systemImage: "square.and.arrow.up") { }
                }
                .toolbar {
                    ToolbarItem(placement: .bottomOrnament) {
                        Button("Text", systemImage: "doc.text") { }
                    }
                    ToolbarItem(placement: .bottomOrnament) {
                        Button("Draw", systemImage: "pencil.line") { }
                    }
                    ToolbarItem(placement: .bottomOrnament) {
                        Button("Eraser", systemImage: "eraser") { }
                    }
                }
            Text("Search")
                .tabItem {
                    Button("Search", systemImage: "magnifyingglass") { }
                }
        }
    }
}

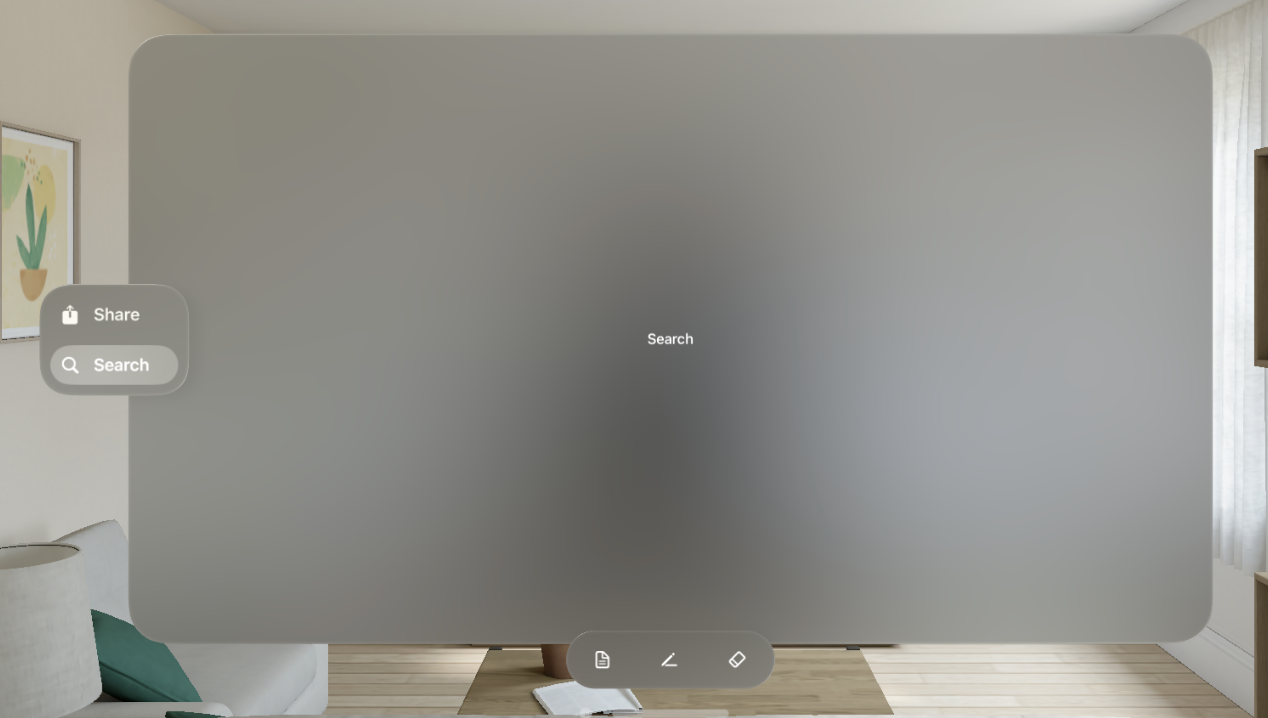

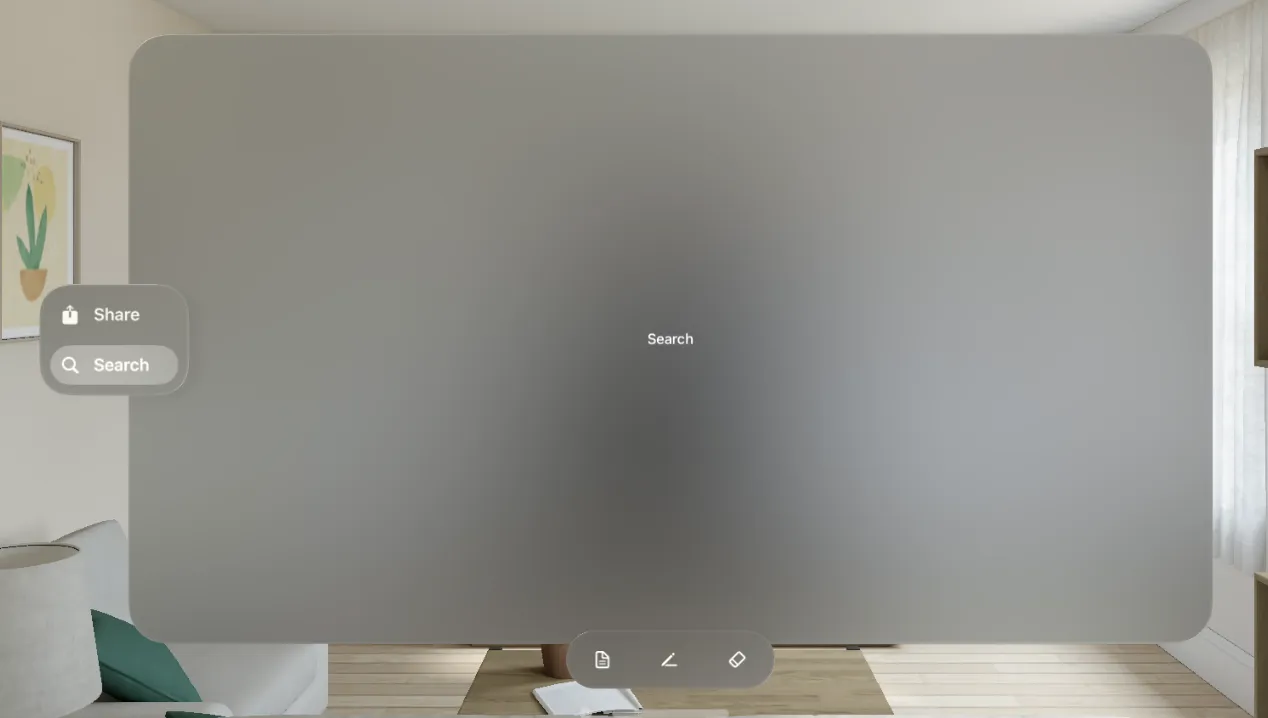

visionOS showing toolbars and tab bars as ornaments

Displaying Custom Ornaments on a SwiftUI View

You can also display custom ornaments with an ornament view modifier on any SwiftUI view. Here’s an example:

struct ViewWithCustomOrnament: View {
    @State private var showingPopover = false
    @State var searchList: [String] = ["Item 1", "Item 2", "Item 3", "Item 4", "Item 5"]

    var body: some View {
        Text("PDFView")
            .ornament(
                visibility: .visible,
                attachmentAnchor: .scene(.trailing),
                contentAlignment: .top
            ) {
               ToolbarOrnament()
            }
            .ornament(
                visibility: .visible,
                attachmentAnchor: .scene(.top),
                contentAlignment: .trailing
            ) {
                HStack {
                    Button("Share", systemImage: "square.and.arrow.up") {
                        // Show sharing UI.
                    }
                    SearchBarOrnamentItem()
                }
                .labelStyle(.iconOnly)
                .padding(20)
                .glassBackgroundEffect()
            }
    }
}

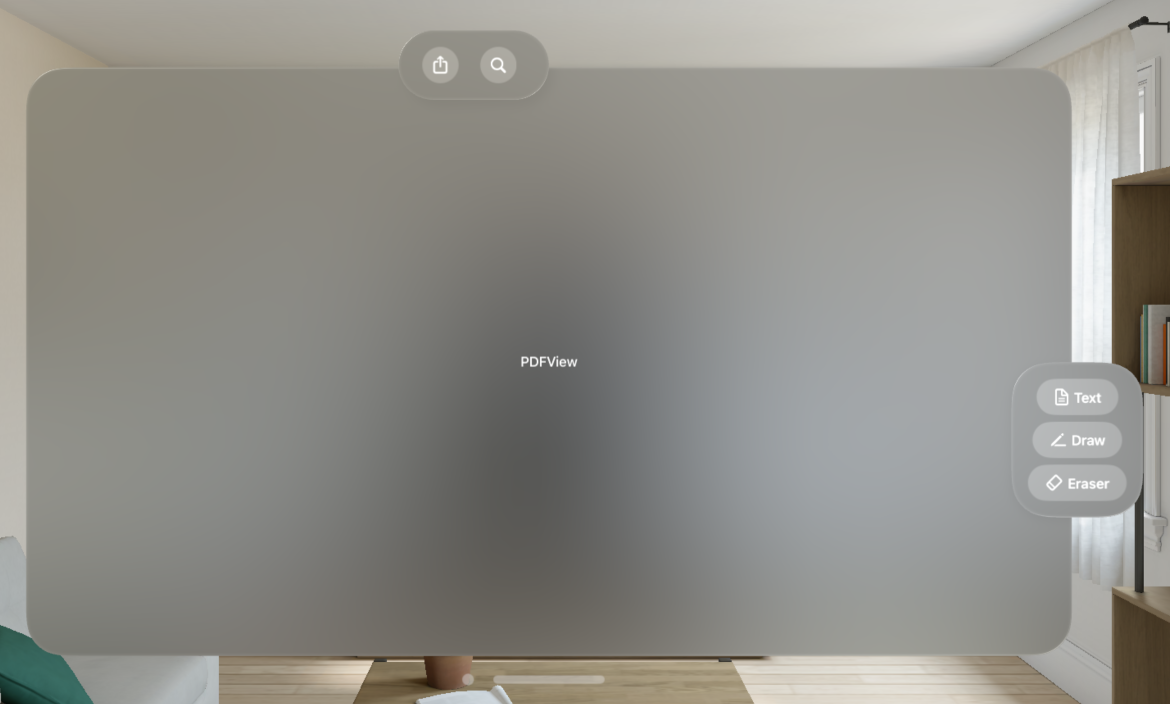

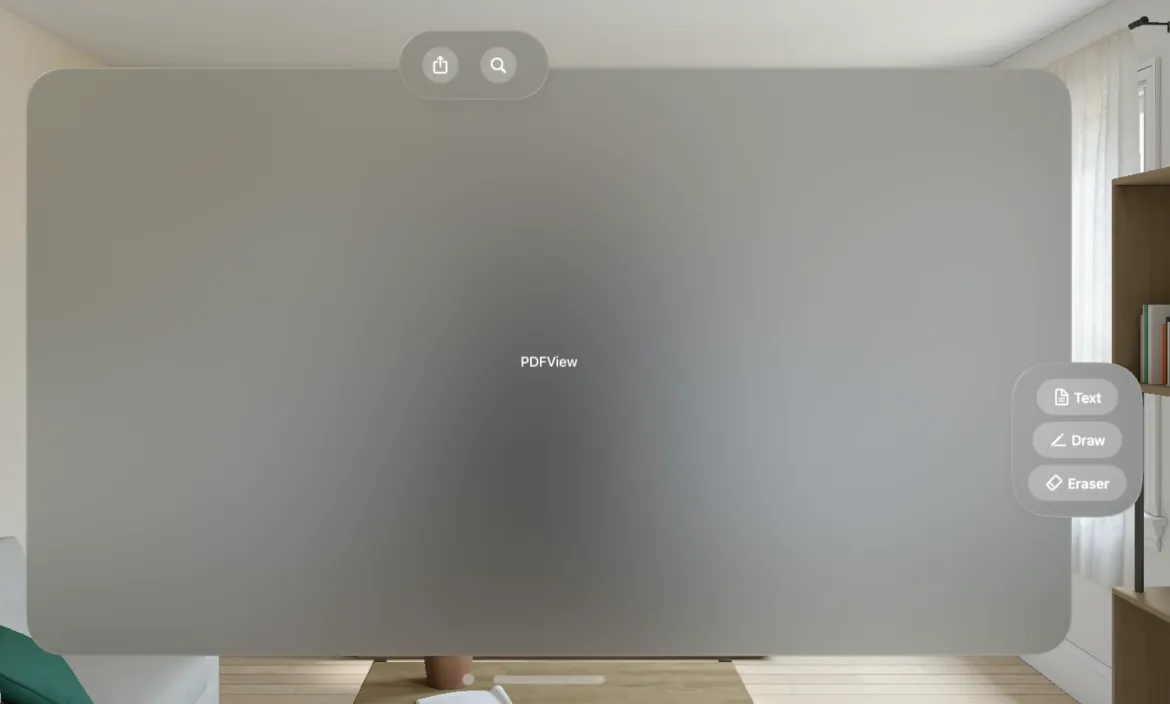

visionOS showing custom ornaments

The example above uses the ornament view modifier, which accepts several parameters. The visibility parameter gives you the ability to dictate when an ornament is displayed.

The attachmentAnchor and contentAlignment parameters let you manage an ornament’s location. They provides the flexibility to specify the exact point in the scene where the ornament should be attached.

The final parameter for the ornament view modifier is the ViewBuilder closure. This allows you to specify an ornament’s content.

Additionally, the glassBackgroundEffect view modifier can be used to apply a visionOS-style background to content.

Displaying Custom Ornaments on a UIKit View Controller

Ornaments can also be shown on any UIKit view controllers using the view controller’s ornaments property, which is an array of UIHostingOrnaments. A UIHostingOrnament is created with a SwiftUI view as a parameter. Here’s an example:

class PDFViewController: UIViewController {

    func setUpOrnaments() {
        self.ornaments = [
            UIHostingOrnament(sceneAnchor: .trailing) { ToolbarOrnament() },
            UIHostingOrnament(sceneAnchor: .top) { NavigationBarOrnament() }
        ]
    }
}

This is how we added different toolbars as ornaments to our PDFViewController.

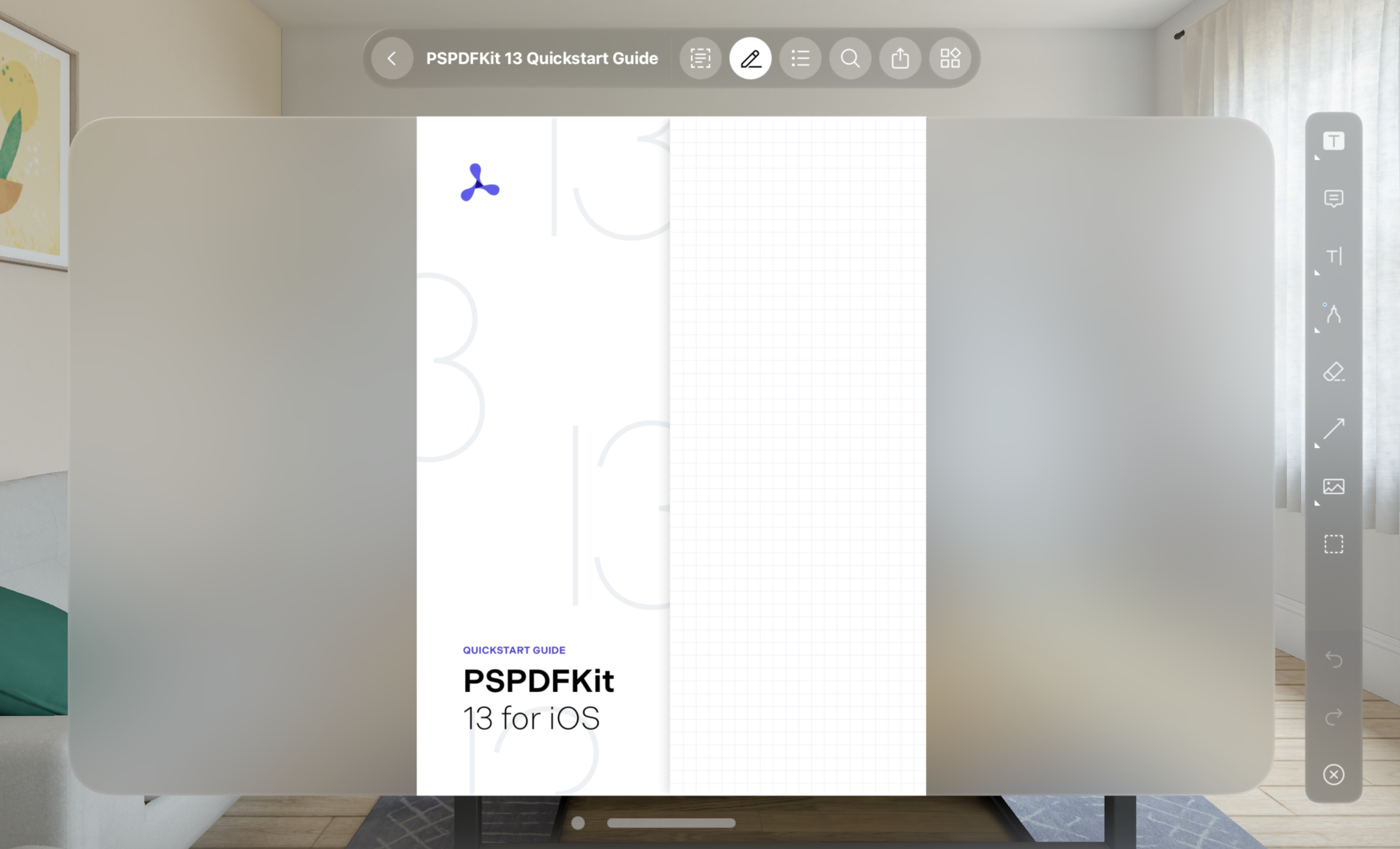

Displaying custom ornaments on UIKit view controllers

Displaying a SwiftUI Popover on a Button Tap in the Ornament UI

You can show a popover using SwiftUI when a button in the ornament user interface (UI) is tapped. Here’s how:

struct SearchBarOrnamentItem: View {
    @State private var showingPopover = false
    @State var searchList: [String] = ["Item 1", "Item 2", "Item 3", "Item 4", "Item 5"]

    var body: some View {
        Button("Search", systemImage: "magnifyingglass") {
            showingPopover = true
        }
        Spacer(minLength: 10)
            .popover(isPresented: self.$showingPopover,
                     attachmentAnchor: .point(.bottom),
                     arrowEdge: .bottom,
                     content: {
                ForEach(searchList, id: \.self) { item in
                    Text(item)
                        .padding()
                }
                .padding()
                .presentationCompactAdaptation(.none)
            })
    }
}

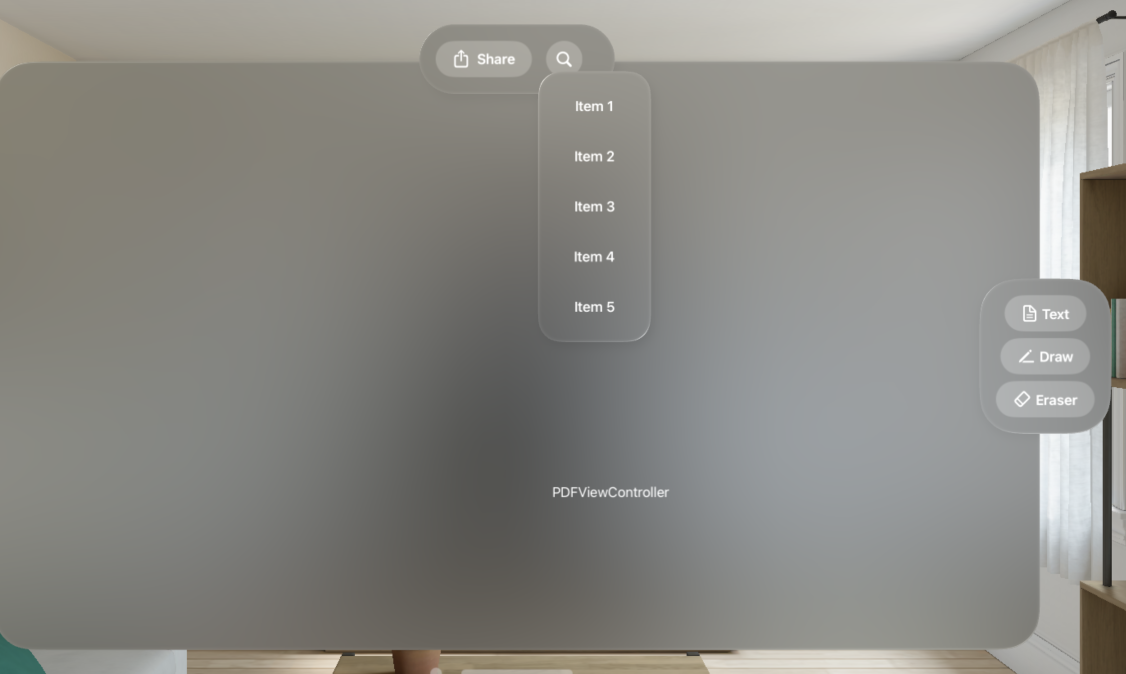

Displaying a SwiftUI popover on a visionOS ornament

Displaying a UIKit Popover on a Button Tap in the Ornament UI (The Actual Problem)

Now that we’ve covered the ornament UI, this section will cover the specific problem we encountered.

We wanted to reuse the popover UI shown when tapping different tool buttons in the ornament UI. The popover view controller needs a UIKit view as the source view to figure out the frame or position of the popover view. But we only have SwiftUI views in the ornament toolbar.

To solve this problem, we created a SwiftUI button wrapper, AnchorButton, which contains an internal UIKit view. AnchorButton uses a ZStack to display a SwiftUI view on top of a UIKit view. Now, since the SwiftUI view and UIKit-wrapped UI view are at the same position in the view hierarchy, we can use the UIKit view as the source view to display the existing UIKit popover. Refer to AnchorButton.swift for more details and the source code of the wrapper in the example project.

With the fix above, we were able to reuse our prebuilt UIKit popover UIs, but we got the following error in the console:

Trying to convert coordinates between views that are in different UIWindows, which isn’t supported, Use convertPoint: fromCoordinateSpace: instead.

This occurred because ornaments are in different windows and coordinates need to be converted to destination coordinates. The code below shows how:

class PDFViewController: UIViewController {

    func showPopover(sourceView: UIView) {
        let popoverViewController = PopoverViewController()
        popoverViewController.modalPresentationStyle = .popover
        if let popoverController = popoverViewController.popoverPresentationController {
            let pointInView = view.convert(sourceView.bounds, from: sourceView.coordinateSpace)
            popoverController.sourceView = view
            popoverController.sourceRect = pointInView
            popoverController.permittedArrowDirections = .up
        }
        self.present(popoverViewController, animated: true)
    }
}

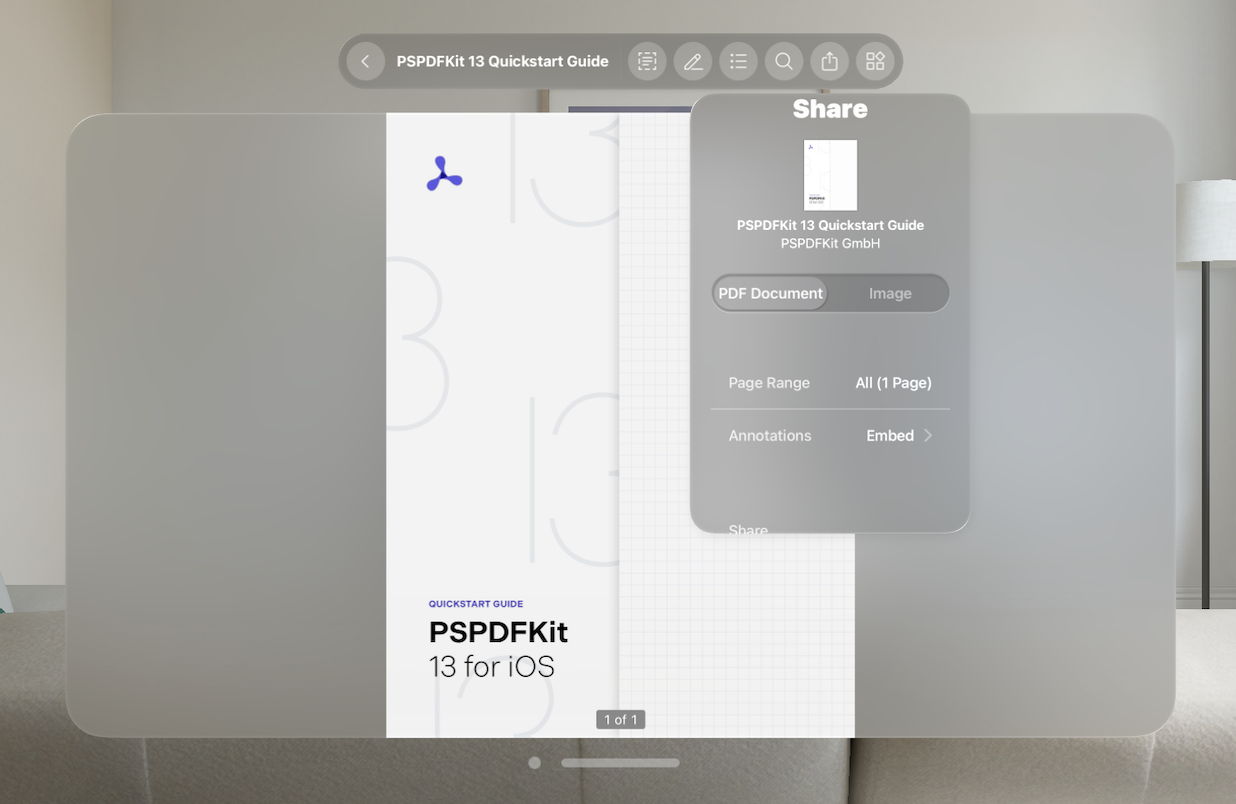

visionOS ornament showing the share popover

Conclusion

visionOS ornaments float alongside an app’s window, holding extra controls and information without obstructing the main content. In this post, we’ve seen how to show ornaments when the content is implemented using either SwiftUI views or UIKit view controllers. We also saw how to present popovers from ornaments, using either SwiftUI or UIKit to display the popover content.

The full source code for the examples used in this post is available on GitHub.

See our getting started guides for information on how to integrate PSPDFKit into your visionOS app. Feel free to reach out to us if you run into any problems or have questions. We’re happy to help!
