Convert HTML to PDF

Document Engine includes support for creating a PDF document from an HTML source. Additionally, you can apply operations — such as watermarking, rotating pages, and importing annotations — to the PDF as part of the conversion process.

This guide explains how to convert HTML into PDF. For more detailed documentation, refer to the following guides:

Document Content

The PDF Generation component leverages HTML’s prominence and wide-reaching support to describe the content and layout of a desired PDF. To produce your first PDF, it’s as simple as passing a basic HTML document, as shown in the following letter example. The letter holds an address, subject, main body, and sign off, all in separate div blocks:

<!DOCTYPE html>
<html>
  <body>
    <div>
      John Smith<br />
      123 Smith Street <br />
      90568 TA <br />
      <br />
      29 February, 2020
    </div>
    <div>Subject: PDF Generation FTW!</div>
    <div>
      <p>
        Lorem ipsum dolor sit amet, consectetur adipiscing elit, ...
      </p>
    </div>
    <div>John Smith Jr. <br /></div>
  </body>
</html>

Next, send the HTML file from above to Document Engine for generation. This is done by sending a multipart request to the /api/build endpoint. Attach the instructions JSON, along with the HTML file from above:

curl -X POST http://localhost:5000/api/documents \
  -H "Authorization: Token token=<API token>" \
  -F page.html=@/path/to/page.html \
  -F style.css=@/path/to/style.css \
  -F my-image.jpg=@/path/to/my-image.jpg \
  -F instructions='{
  "parts": [
    {
      "html": "page.html",
      "assets": [
        "style.css",
        "my-image.jpg"
      ]
    }
  ]
}' \
  -o result.pdf
POST /api/documents HTTP/1.1
Content-Type: multipart/form-data; boundary=customboundary
Authorization: Token token=<API token>

--customboundary
Content-Disposition: form-data; name="page.html"; filename="page.html"
Content-Type: text/html

<HTML data>
--customboundary
Content-Disposition: form-data; name="style.css"; filename="style.css"


--customboundary
Content-Disposition: form-data; name="my-image.jpg"; filename="my-image.jpg"


--customboundary
Content-Disposition: form-data; name="instructions"
Content-Type: application/json

{
  "parts": [
    {
      "html": "page.html",
      "assets": [
        "style.css",
        "my-image.jpg"
      ]
    }
  ]
}
--customboundary--

After performing the above curl command, you’ll receive a PDF that looks like the following.

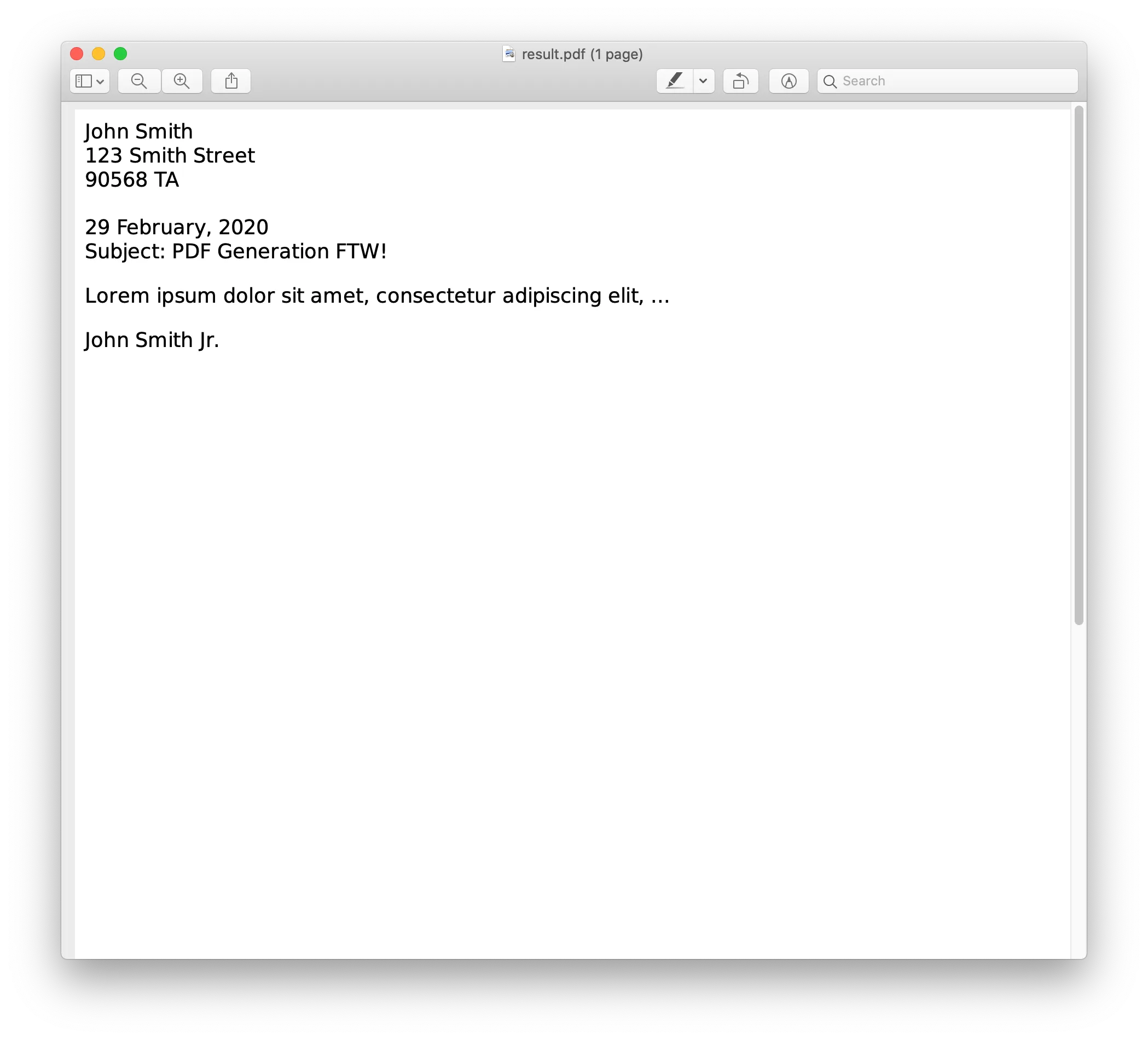

A simple letter example

To help design your PDF, preview your HTML in Chrome or another Chromium-based browser. Minor differences, outlined in the HTML layout and CSS considerations guide, are to be expected. To further enhance the design experience, you can use the Chrome DevTools to resize your viewport to match your desired page size.

Document Layout

Now that you have the content you want, the next step is to improve the layout.

From the last example, you can see the text was pushing up to the side of the page, and the page size was A4. With the PDF Generation feature, the page size and margins are adjustable. To change them, include the extra information in the PDF Generation schema:

curl -X POST http://localhost:5000/api/documents \
  -H "Authorization: Token token=<API token>" \
  -F page.html=@/path/to/page.html \
  -F instructions='{
  "parts": [
    {
      "html": "page.html",
      "layout": {
        "size": "a6",
        "margin": {
          "top": 10,
          "left": 10,
          "bottom": 10,
          "right": 10
        }
      }
    }
  ]
}' \
  -o result.pdf
POST /api/documents HTTP/1.1
Content-Type: multipart/form-data; boundary=customboundary
Authorization: Token token=<API token>

--customboundary
Content-Disposition: form-data; name="page.html"; filename="page.html"
Content-Type: text/html

<HTML data>
--customboundary
Content-Disposition: form-data; name="instructions"
Content-Type: application/json

{
  "parts": [
    {
      "html": "page.html",
      "layout": {
        "size": "a6",
        "margin": {
          "top": 10,
          "left": 10,
          "bottom": 10,
          "right": 10
        }
      }
    }
  ]
}
--customboundary--

The size of the page has been reduced to A6, and all the edges have a margin of 10 mm.

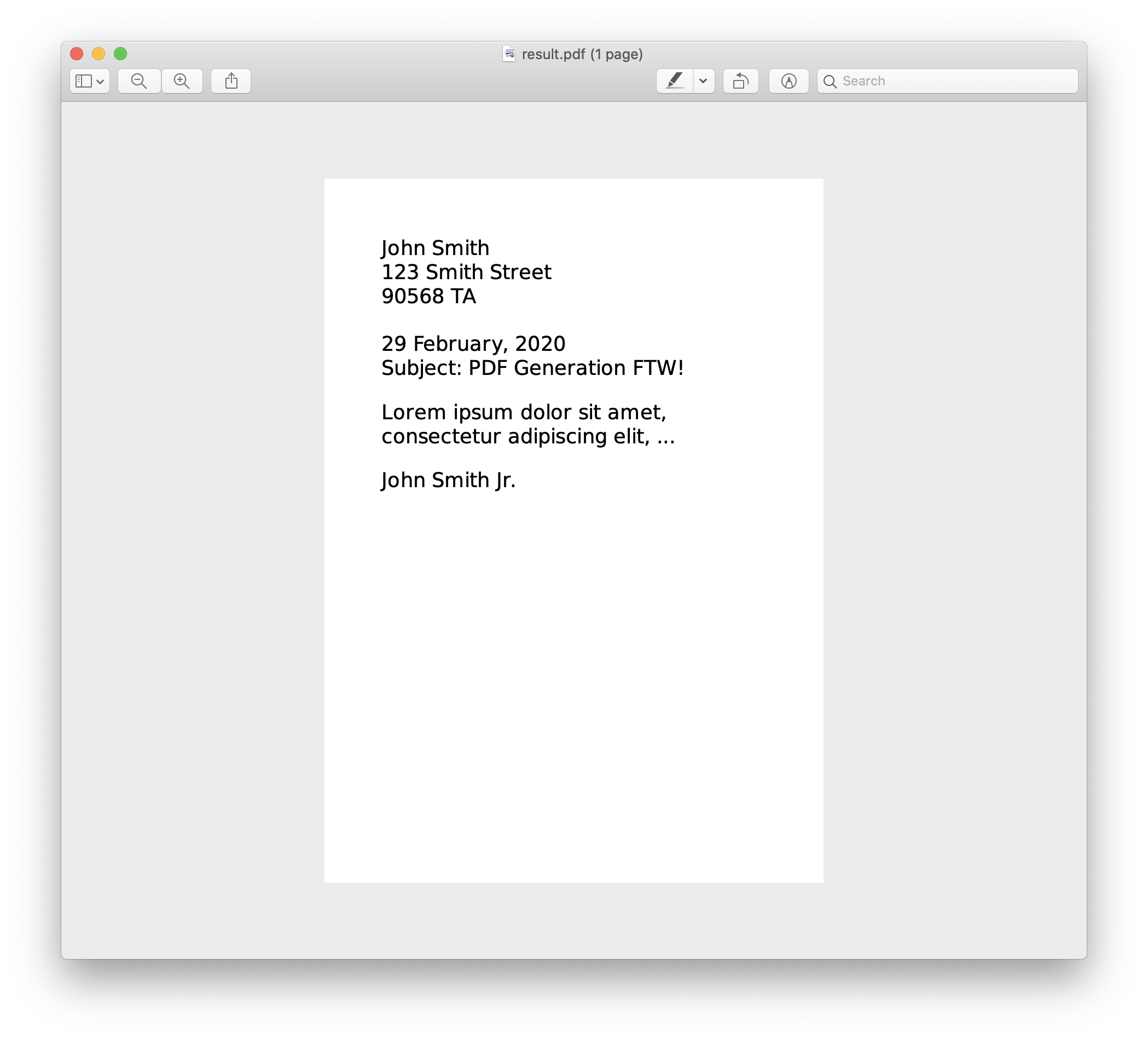

A letter with layout options example

Document Styling

To style various aspects of the documents, it’s possible to use CSS, much like you would on the web. CSS is well supported and expressive, which helps you achieve any look you desire.

Continuing with the letter example, move the address over to the right-hand side of the page, and style the subject line to make it more prominent:

<!DOCTYPE html>
<head>
  <style type="text/css">
    .address {
      text-align: left;
      float: right;
      margin-bottom: 20px;
    }
    .subject {
      clear: both;
      font-weight: bold;
    }
  </style>
</head>
<html>
  <body>
    <div class="address">
      John Smith<br />
      123 Smith Street <br />
      90568 TA <br />
      <br />
      29 February, 2020
    </div>
    <div class="subject">Subject: PDF Generation FTW!</div>
    <div>
      <p>
        Lorem ipsum dolor sit amet, consectetur adipiscing elit, ...
      </p>
    </div>
    <div>John Smith Jr. <br /></div>
  </body>
</html>

Send the same multipart request to Document Engine with the new HTML file. The result is a PDF document with certain elements styled as described in the following CSS file:

curl -X POST http://localhost:5000/api/documents \
  -H "Authorization: Token token=<API token>" \
  -F page.html=@/path/to/page.html \
  -F instructions='{
  "parts": [
    {
      "html": "page.html",
      "layout": {
        "size": "a6",
        "margin": {
          "top": 10,
          "left": 10,
          "bottom": 10,
          "right": 10
        }
      }
    }
  ]
}' \
  -o result.pdf
POST /api/documents HTTP/1.1
Content-Type: multipart/form-data; boundary=customboundary
Authorization: Token token=<API token>

--customboundary
Content-Disposition: form-data; name="page.html"; filename="page.html"
Content-Type: text/html

<HTML data>
--customboundary
Content-Disposition: form-data; name="instructions"
Content-Type: application/json

{
  "parts": [
    {
      "html": "page.html",
      "layout": {
        "size": "a6",
        "margin": {
          "top": 10,
          "left": 10,
          "bottom": 10,
          "right": 10
        }
      }
    }
  ]
}
--customboundary--

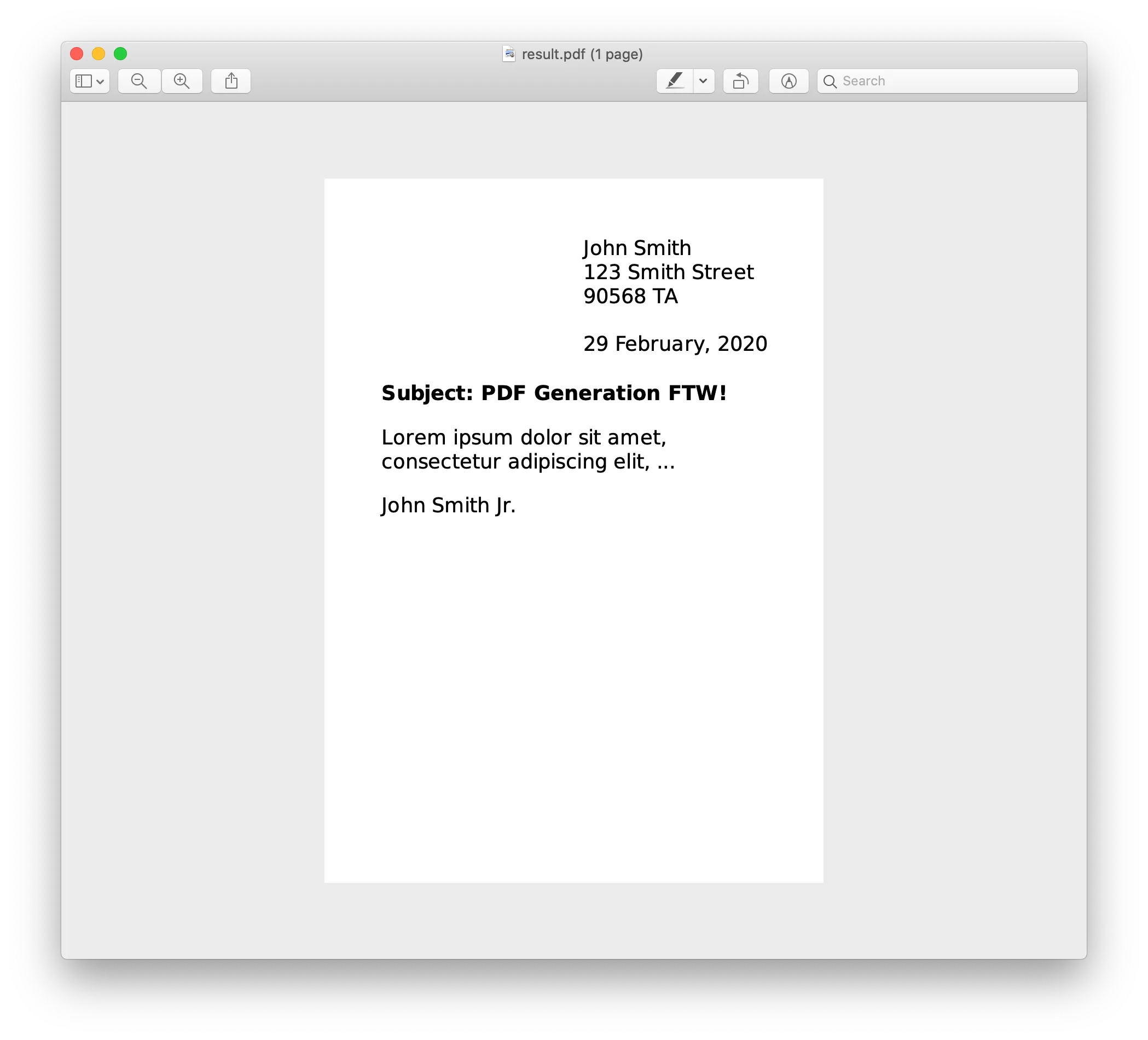

A letter with CSS styles example

Font Selection

Rather than using the default font, it may be desirable to use a custom font to enhance the look of your final document.

You can do so by providing a font file in the generation schema and specifying the font in your HTML.

In the following example, you can use an Open Sans font, which you can retrieve from the Google Fonts repository.

First, adjust the HTML to both use the font file and specify the font family. Note that the src of the font file is referenced with no subdirectories, as though the file were residing next to the HTML. This is because PDF Generation only supports a flat-like directory structure:

<!DOCTYPE html>
<head>
  <style type="text/css">
    @font-face {
      font-family: "Open Sans";
      src: url("OpenSans-Regular.ttf") format("truetype");
    }
    body {
      font-family: "Open Sans", sans-serif;
    }
    .address {
      text-align: left;
      float: right;
      margin-bottom: 20px;
    }
    .subject {
      clear: both;
      font-weight: bold;
    }
  </style>
</head>
<html>
  <body>
    <div class="address">
      John Smith<br />
      123 Smith Street <br />
      90568 TA <br />
      <br />
      29 February, 2020
    </div>
    <div class="subject">Subject: PDF Generation FTW!</div>
    <div>
      <p>
        Lorem ipsum dolor sit amet, consectetur adipiscing elit, ...
      </p>
    </div>
    <div>John Smith Jr. <br /></div>
  </body>
</html>

Send the multipart request to Document Engine. Be sure that the extra OpenSans-Regular.tff asset is referenced in the HTML. The example below shows how the multipart request is formed.

The font file, OpenSans-Regular.ttf, doesn’t reside in a subdirectory, and its name in the multipart request is the same name that’s referenced in the HTML file.

curl -X POST http://localhost:5000/api/documents \
  -H "Authorization: Token token=<API token>" \
  -F page.html=@/path/to/page.html \
  -F OpenSans-Regular.ttf=@/path/to/OpenSans-Regular.tff \
  -F instructions='{
  "parts": [
    {
      "html": "page.html",
      "layout": {
        "size": "a6",
        "margin": {
          "top": 10,
          "left": 10,
          "bottom": 10,
          "right": 10
        },
        "assets": [
          "OpenSans-Regular.ttf"
        ]
      }
    }
  ]
}' \
  -o result.pdf
POST /api/documents HTTP/1.1
Content-Type: multipart/form-data; boundary=customboundary
Authorization: Token token=<API token>

--customboundary
Content-Disposition: form-data; name="page.html"; filename="page.html"
Content-Type: text/html

<HTML data>
--customboundary
Content-Disposition: form-data; name="OpenSans-Regular.ttf"; filename="OpenSans-Regular.tff"


--customboundary
Content-Disposition: form-data; name="instructions"
Content-Type: application/json

{
  "parts": [
    {
      "html": "page.html",
      "layout": {
        "size": "a6",
        "margin": {
          "top": 10,
          "left": 10,
          "bottom": 10,
          "right": 10
        },
        "assets": [
          "OpenSans-Regular.ttf"
        ]
      }
    }
  ]
}
--customboundary--

result.pdf will now have the font applied to the whole document and will render like the following.

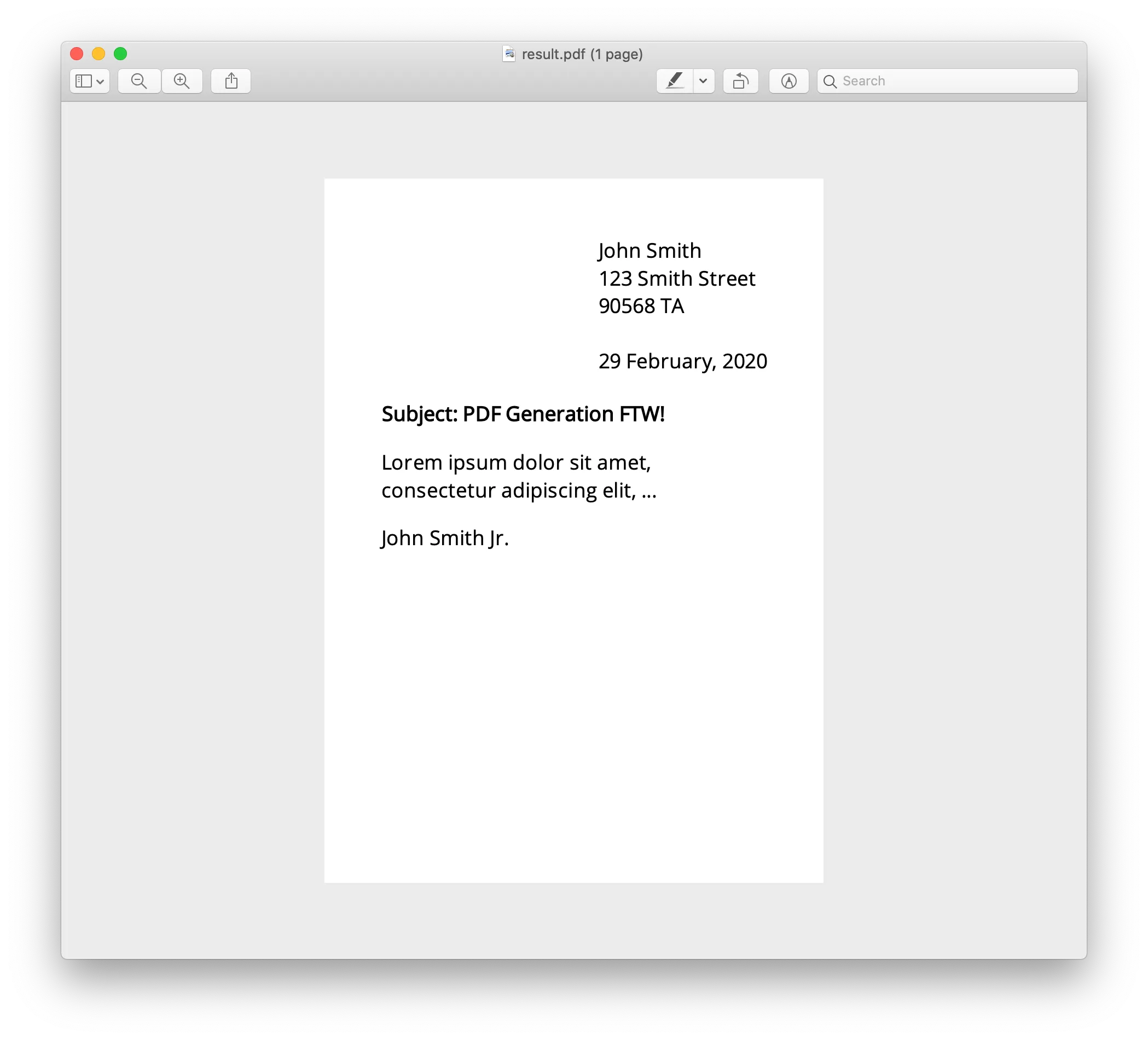

A letter with custom font example

Next Steps

You’ve walked through each step of defining, aligning, and styling, and now you should have the skills to design a wide range of unique PDFs. For an enhanced design experience, we suggest using a Chromium-based browser, which will speed up the development process.

After refining your skills, you may realize you have the need to inject elements and values into the HTML prior to sending the document for generation. In the following guides, we demonstrate how to inject data into an HTML template to produce highly customized PDFs — such as invoices with multiple line items, order forms with unique products, or runtime-generated graphs — so as to provide additional context for your customers.

Choose your language-specific Variable Data guide to learn how to inject elements and values at runtime:
