Enhance Characters in PDFs and Images in C#
This guide explains how to enhance characters in PDFs and images.
Thick and Oversampled Characters
Sometimes characters in documents appear thick and their features are unclear — for example, if too much ink was used to print a page, or if a document was scanned and printed many times. A process called erosion can fix this issue by removing pixels on the edges of images.

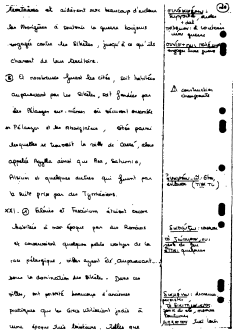

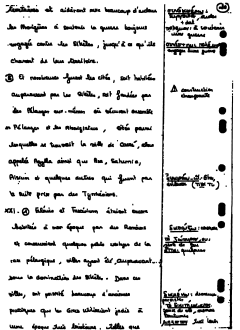

The images below show what a document looks like before and after erosion.
![]()
Don’t preprocess documents before recognizing text with OCR. The GdPicture.NET OCR engine preprocesses documents automatically with better results than manual preprocessing.
To fix thick characters, follow these steps:
-
Create a
GdPictureImaging
object. -
Select the image by passing its path to the
CreateGdPictureImageFromFile
method of theGdPictureImaging
object. -
Fix thick characters by passing the image ID to the
FxBitonalErode8
method of theGdPictureImaging
object. -
Save the output in a new image with the
SaveAsPNG
method of theGdPictureImaging
object. -
Release the image resource with the
ReleaseGdPictureImage
method of theGdPictureImaging
object.
The example below fixes thick characters:
using GdPictureImaging gdpictureImaging = new GdPictureImaging(); // Load the image from a file. int imageId = gdpictureImaging.CreateGdPictureImageFromFile(@"C:/temp/source.png"); // Fix thick characters. gdpictureImaging.FxBitonalErode8(imageId); // Save the output in a new image. gdpictureImaging.SaveAsPNG(imageId, @"C:/temp/output.png"); gdpictureImaging.ReleaseGdPictureImage(imageId);
Using gdpictureImaging As GdPictureImaging = New GdPictureImaging() ' Load the image from a file. Dim imageId As Integer = gdpictureImaging.CreateGdPictureImageFromFile("C:/temp/source.png") ' Fix thick characters. gdpictureImaging.FxBitonalErode8(imageId) ' Save the output in a new image. gdpictureImaging.SaveAsPNG(imageId, "C:/temp/output.png") gdpictureImaging.ReleaseGdPictureImage(imageId) End Using
Used Methods and Properties
Related Topics
Faint and Low-Sampled Characters
Sometimes characters in documents appear faint and low-sampled, and their features are unclear — for example, if the brightness used to scan a page was too high, or a document was converted to binary images with a bad algorithm. A process called black dilation can fix this issue by adding black pixels around objects.
To fix faint characters, follow these steps:
-
Create a
GdPictureImaging
object. -
Select the image by passing its path to the
CreateGdPictureImageFromFile
method of theGdPictureImaging
object. -
Fix faint characters by passing the image ID to the
FxBitonalDilate8
method of theGdPictureImaging
object. -
Save the output in a new image with the
SaveAsPNG
method of theGdPictureImaging
object. -
Release the image resource with the
ReleaseGdPictureImage
method of theGdPictureImaging
object.
The example below fixes faint characters:
using GdPictureImaging gdpictureImaging = new GdPictureImaging(); // Load the image from a file. int imageId = gdpictureImaging.CreateGdPictureImageFromFile(@"C:/temp/source.png"); // Fix faint characters. gdpictureImaging.FxBitonalDilate8(imageId); // Save the output in a new image. gdpictureImaging.SaveAsPNG(imageId, @"C:/temp/output.png"); gdpictureImaging.ReleaseGdPictureImage(imageId);
Using gdpictureImaging As GdPictureImaging = New GdPictureImaging() ' Load the image from a file. Dim imageId As Integer = gdpictureImaging.CreateGdPictureImageFromFile("C:/temp/source.png") ' Fix faint characters. gdpictureImaging.FxBitonalDilate8(imageId) ' Save the output in a new image. gdpictureImaging.SaveAsPNG(imageId, "C:/temp/output.png") gdpictureImaging.ReleaseGdPictureImage(imageId) End Using
