How do I customize the options in the annotation inspector?

To customize the options in the annotation inspector, you’ll have to change the propertiesForAnnotations of PDFConfigurationBuilder. Use a dictionary containing an Annotation.Tool. This dictionary should specify the annotation type as a key, and an array of strings — which lists the allowed properties — as the value.

Example 1

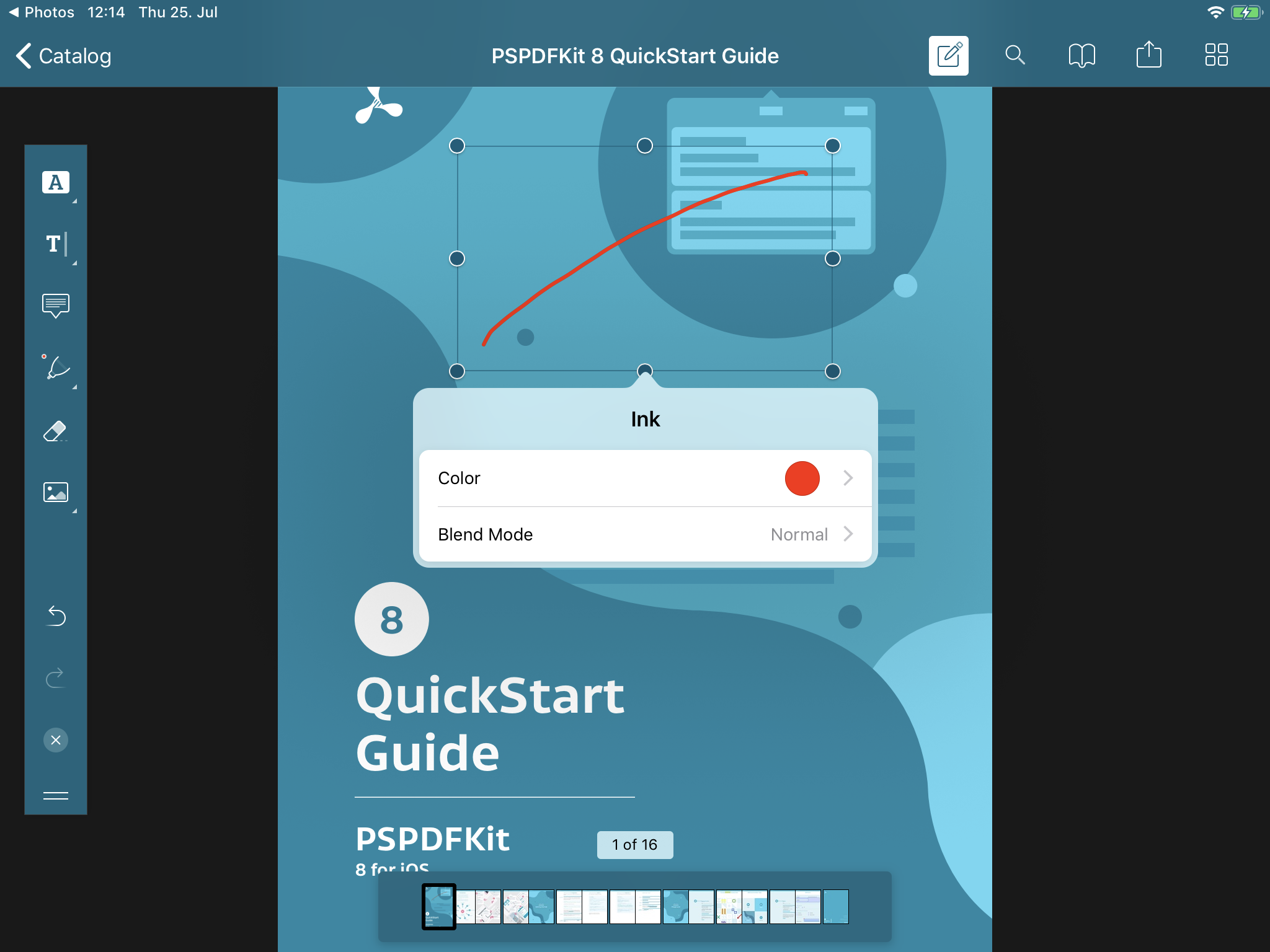

The example below shows how to customize annotation inspector options for ink annotations:

let configuration = PDFConfiguration {
    // Do not show color presets.
    var typesShowingColorPresets = $0.typesShowingColorPresets
    typesShowingColorPresets.remove(.ink)
    $0.typesShowingColorPresets = typesShowingColorPresets


    // Configure the properties for ink annotations to only show the color and blend mode setting in the annotation inspector.
    var properties = $0.propertiesForAnnotations
    properties[.ink] = [[AnnotationStyle.Key.color, AnnotationStyle.Key.blendMode]]
    $0.propertiesForAnnotations = properties
}

Example 2

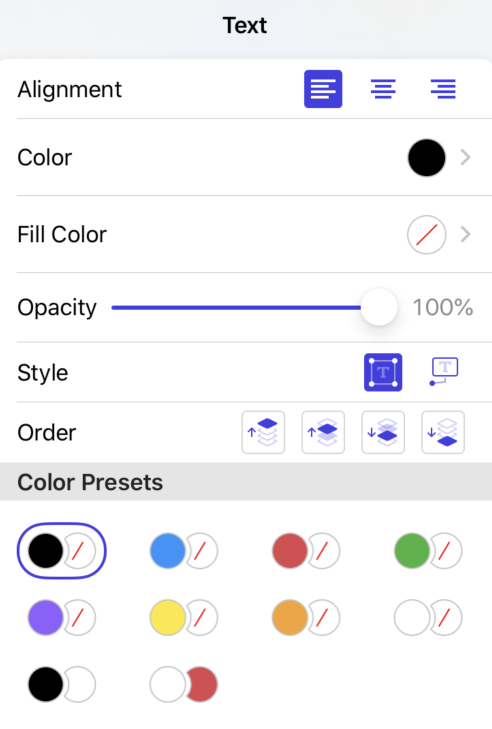

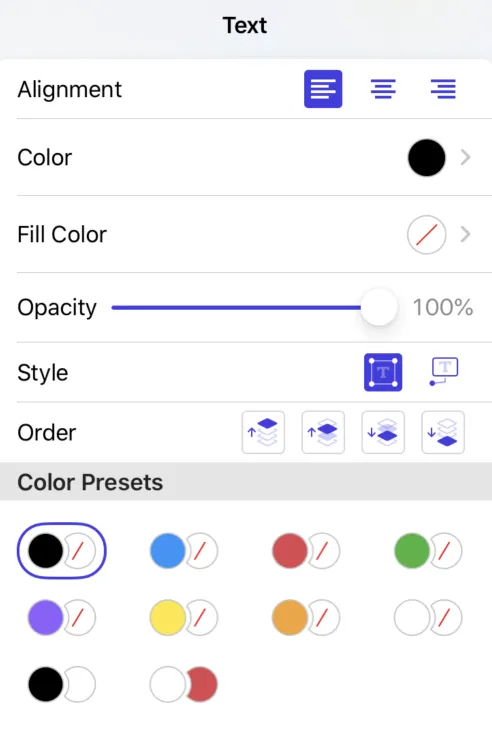

This example illustrates how to remove the font name and size options from the annotation inspector for free text annotations:

let configuration = PDFConfiguration {
    // Configure the properties for free text annotations to hide the font name and size settings in the annotation inspector.
    var properties = $0.propertiesForAnnotations
    properties[.freeText] = [[AnnotationStyle.Key.textAlignment, AnnotationStyle.Key.color, AnnotationStyle.Key.fillColor, AnnotationStyle.Key.alpha]]
    $0.propertiesForAnnotations = properties
}

For more information, check out the AnnotationInspectorBlendModeStampExample.swift(opens in a new tab) and BlendModeMenuForMarkupAnnotationsExample.swift(opens in a new tab) examples from our Nutrient Catalog example app.
