Class: TextAnnotation

PSPDFKit.Annotations.TextAnnotation

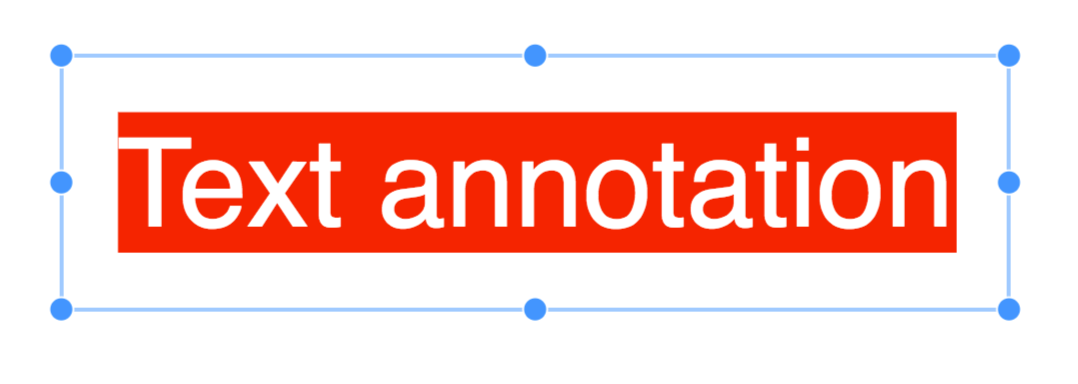

A free form text that will be rendered inside the bounding box. It has no open or closed state - instead of being displayed in a pop-up window, the text is always visible.

Fonts are client specific and determined during runtime. If a font is not found, we will automatically fall back to a sans serif font.

Constructor

new PSPDFKit.Annotations.TextAnnotation(args)

Free form text that will be rendered inside the bounding box.

Parameters:
Name Type Description
args object

An object of the members.
Example

Create a text annotation

const annotation = new PSPDFKit.Annotations.TextAnnotation({
  pageIndex: 0,
  text: { format: "plain", value : "Welcome to\nPSPDFKit" },
  font: "Helvetica",
  isBold: true,
  horizontalAlign: "center",
  boundingBox: new PSPDFKit.Geometry.Rect({ left: 10, top: 20, width: 30, height: 40 }),
  fontColor: PSPDFKit.Color.RED
});

Extends

Members



Members

(nullable) backgroundColor: PSPDFKit.Color

Optional background color that will fill the complete bounding box.

Type:
Default Value:
  • null

blendMode: PSPDFKit.BlendMode

The blend mode defines how the color of the annotation will be applied to its background.

Type:
Default Value:
  • "normal"

(nullable) borderColor: PSPDFKit.Color

Optional border color that will be used for the text border and the line for text annotations of type callout. It will be not be rendered if the callout property is not set.

Type:
Default Value:
  • null

boundingBox: PSPDFKit.Geometry.Rect

Position of this annotation on the page. It's necessary that this spans all visible points of the annotation, otherwise hit testing and other features may not work.

Type:

(nullable) callout: PSPDFKit.Callout

The callout that is attached to the annotation.

Type:
Default Value:
  • null

(readonly) canSetGroup: boolean

This property defines whether the user has permission to edit the group of this annotation.

It is only available when collaboration permissions is enabled on Server-Backed deployments.

Type:
  • boolean

createdAt: Date

The date of the annotation creation.

Type:
  • Date

(nullable) creatorName: string

The name of the creator of the annotation. This is a general purpose string which can easily be spoofed and might not reflect the actual creator of the annotation.

Type:
  • string

(nullable) customData: object

Annotations can store additional user-specified data.

PSPDFKit will not use or evaluate customData in the UI directly. You have full control over this property. For new annotations, this defaults to null.

customData will be stored as JSON through JSON.serialize() and JSON.parse(), and so must be a plain JSON-serializable object.

Type:
  • object
Example

Adding a new PSPDFKit.Annotations.EllipseAnnotation with custom data attached:

const annotation = new PSPDFKit.Annotations.EllipseAnnotation({
  pageIndex: 0,
  boundingBox: new PSPDFKit.Geometry.Rect({
    top: 10,
    left: 10,
    width: 100,
    height: 100
  }),
  customData: {
    circleId: "my-circle"
  }
});

font: string

The name of the font family that should be used.

Fonts are client specific and determined during runtime. If a font is not found, we will automatically fall back to 'sans-serif'.

We test the following list at runtime. The first available font will be used as the default for all new text annotations: Helvetica, Arial, Calibri, Century Gothic, Consolas, Courier, Dejavu Sans, Dejavu Serif, Georgia, Gill Sans, Impact, Lucida Sans, Myriad Pro, Open Sans, Palatino, Tahoma, Times New Roman, Trebuchet, Verdana, Zapfino, Comic Sans.

Type:
  • string
Default Value:
  • "Helvetica"

(nullable) fontColor: PSPDFKit.Color

A PSPDFKit.Color for the visible glyphs, or null for transparent color.

Type:
Default Value:
  • Color.BLACK

fontSize: number

The font size in page size pixels. Per default, we use values between 10 and 192 inclusive in the UI.

The text will scale when you zoom in.

Type:
  • number
Default Value:
  • 18

group: string

This property is used to define the permission scope for this annotation.

It is only available when collaboration permissions is enabled on Server-Backed deployments.

Type:
  • string

hidden: boolean

If set, do not display or print the annotation or allow it to interact with the user.

Type:
  • boolean
Default Value:
  • false

horizontalAlign: "left"|"center"|"right"

The horizontal alignment of the text inside the bounding box. Can be either one of:

  • left
  • center
  • right

This is equal to the CSS text-align property.

Type:
  • "left" | "center" | "right"
Default Value:
  • "left"

id: string

A unique identifier to describe the annotation. When an annotation is created in the UI, the viewer has to generate a unique ID.

When changes are saved to the underlying annotation provider, we call PSPDFKit.Instance#ensureAnnotationSaved to make sure the annotation has been persisted from the provider.

Type:
  • string

isBold: boolean

If true, the font will be bold if the font family supports this.

Type:
  • boolean
Default Value:
  • false

(readonly) isDeletable: boolean

This property defines whether this annotation can be deleted or not. The value of this field depends on the set of collaboration permissions defined in the JWT token.

It is only available when collaboration permissions is enabled on Server-Backed deployments.

Type:
  • boolean

(readonly) isEditable: boolean

This property defines whether this annotation can be edited or not. The value of this field depends on the set of collaboration permissions defined in the JWT token.

It is only available when collaboration permissions is enabled on Server-Backed deployments.

Type:
  • boolean

isFitting: boolean

When the annotation is modified through PSPDFKit for Web, we will set this flag whenever the whole text fits the bounds of the annotation without overflowing.

Type:
  • boolean

isItalic: boolean

If true, the font will be italic if the font family supports this.

Type:
  • boolean
Default Value:
  • false

locked: boolean

The annotation flag that prevents the annotation from being modified.

Type:
  • boolean
Default Value:
  • false

lockedContents: boolean

The annotation flag that prevents the annotation content from being modified.

Type:
  • boolean
Default Value:
  • false

(nullable) name: string

An optional field that may be used to identify the annotation.

By default, we'll set that to the same value as the automatically generated PSPDFKit.Annotations.Annotation#id.

Type:
  • string

noPrint: boolean

The annotation flag that prevents the annotation from being printed.

Type:
  • boolean
Default Value:
  • false

noView: boolean

The annotation flag that prevents the annotation from being rendered in the UI.

The annotation may still be part of the printed page, depending of the value of the PSPDFKit.Annotations.Annotation#noPrint flag.

Type:
  • boolean
Default Value:
  • false

(nullable) noZoom: boolean

When set, the annotation will not scale up in the page when it's zoomed in. The flag doesn't have an effect when the page is zoomed out to a zoom level less than 1. The flag is not currently supported when the callout property is set.

Type:
  • boolean
Default Value:
  • false

(nullable) note: string

An optional note that can be set on any annotation.

This value is displayed in the PSPDFKit for Web UI for all annotations except NoteAnnotation, TextAnnotation, WidgetAnnotation and CommentMarkerAnnotation.

Type:
  • string

opacity: number

A transparency value that is applied to the complete annotation. The value is capped between 0 and 1 inclusive.

Type:
  • number
Default Value:
  • 1

pageIndex: number

The page index on which the annotation is placed. It's important to notice that an annotation can only ever be on one page. If you create for example an ink annotation with lines on two pages, two annotation records will be created.

pageIndex is zero-based and has a maximum value of totalPageCount - 1.

Type:
  • number

(nullable) pdfObjectId: number

When the annotation is extracted directly from a PDF file, the pdfObjectId refers to the identifier that was used in the PDF document.

This ID is optional since newly created annotations using the SYNCProvider annotation provider won't have a pdfObjectId assigned.

Type:
  • number
Default Value:
  • null

readOnly: boolean

The annotation flag that makes the annotation read only.

Type:
  • boolean
Default Value:
  • false

rotation: number

The counter-clockwise rotation value in degrees relative to the rotated PDF page. Inserting an annotation with a rotation value of 0 will make it appear in the same direction as the UI appears, when no PSPDFKit.ViewState#pagesRotation is set.

Text annotations support free rotation using integers between 0° and 359°. Negative values or values above 359 are normalized to this interval. Attempting to use non-integer values will result in an error.

Type:
  • number
Default Value:
  • 0

(nullable) subject: string

An optional annotation subject, representing a short description of the subject being addressed by the annotation. This property has no effect on the annotation rendering.

Type:
  • string

text: Text

The visible contents in plain text/xhtml formats.

We use a simple newline delimiter \n for multi line texts in case of plain text. A trailing newline (e.g. foobar\n) will result in an additional line.

In case of XHTML, we support the following tags:

  • <b>: Bold
  • <i>: Italic
  • <span>: Font color, background color and underline using the style attribute (e.g. <span style="color: red; background-color: blue; text-decoration: underline">Hello</span>)
  • p: Paragraph. You can use this to add a newline between paragraphs.
Type:
Default Value:
  • { format: "plain", value: "" }
Example

Get the text value of a text annotation

const { value, format } = annotation.text;

updatedAt: Date

The date of last annotation update.

Type:
  • Date

verticalAlign: "top"|"center"|"bottom"

The vertical alignment of the text inside the bounding box. Can be either one of:

  • top
  • center
  • bottom
Type:
  • "top" | "center" | "bottom"
Default Value:
  • "top"
