How to Build an HTML5 Image Viewer with PSPDFKit
In this post, we provide you with a step-by-step guide to how you can deploy PSPDFKit’s HTML5 image viewer.
HTML5 (HyperText Markup Language) is a markup language used to create the structure of webpages. It’s the foundation of the web, and it’s an essential language for web developers. It’s based on tags, and tags tell the browser how to display content on the screen.
You can think of HTML as a skeleton for your website. After writing the markup (skeleton) for your website, you can style your website using CSS to make it look the way you want it to look.
What Is an HTML5 Image Viewer?
An HTML5 image viewer uses JavaScript to render and view images in a web browser without the need to download it to your hard drive or use an external application like an image reader.
PSPDFKit HTML5 Image Viewer
We offer a commercial HTML5 image viewer library that can easily be integrated into your web application. Our HTML5 viewer supports rendering JPEG, PNG, TIFF, and PDF files in any modern browser and on any mobile device without any plugins.
It comes with 30+ features that let you view, annotate, edit, and sign documents directly in your browser. Out of the box, it has a polished and flexible UI that you can extend or simplify based on your unique use case.
- A prebuilt and polished UI for an improved user experience
- 15+ prebuilt annotation tools to enable document collaboration
- Support for more file types with client-side PDF, MS Office, and image viewing
- Dedicated support from engineers to speed up integration
Example of Our HTML5 Image Viewer
To see our image viewer in action, upload a JPG, PNG, or TIFF file by selecting Choose Example > Open Document. Once your image is displayed in the viewer, you can try drawing freehand, adding a note, or applying a crop or an e-signature.
Requirements to Get Started
- Node.js
- A package manager compatible with npm (the npm client is installed with Node.js by default)
Adding PSPDFKit to Your Project
-
Install the
pspdfkitpackage fromnpm. If you prefer, you can also download PSPDFKit for Web manually:
npm install pspdfkit
-
For PSPDFKit for Web to work, it’s necessary to copy the directory containing all the required library files (artifacts) to the
assetsfolder. Use the following command to do this:
cp -R ./node_modules/pspdfkit/dist/ ./assets/
Make sure your assets directory contains the pspdfkit.js file and a pspdfkit-lib directory with the library assets.
Integrating into Your Project
-
Add the image you want to display to your project’s directory. You can use our demo image as an example.
-
Add an empty
<div>element with a defined height to your HTML file where PSPDFKit will be mounted:
<div id="pspdfkit" style="height: 100vh;"></div>
-
Include
pspdfkit.jsin your HTML page:
<script src="assets/pspdfkit.js"></script>-
Finally, initialize PSPDFKit for Web in JavaScript by calling
PSPDFKit.load():
<script>
PSPDFKit.load({
container: "#pspdfkit",
document: "image.jpg" // Add the path to your image here.
})
.then(function(instance) {
console.log("PSPDFKit loaded", instance);
})
.catch(function(error) {
console.error(error.message);
});
</script>You can see the full index.html file below:
<!DOCTYPE html> <html> <head> <title>My App</title> <!-- Provide proper viewport information so that the layout works on mobile devices. --> <meta name="viewport" content="width=device-width, initial-scale=1.0, minimum-scale=1.0, maximum-scale=1.0, user-scalable=no" /> </head> <body> <!-- Element where PSPDFKit will be mounted. --> <div id="pspdfkit" style="height: 100vh;"></div> <script src="assets/pspdfkit.js"></script> <script> PSPDFKit.load({ container: '#pspdfkit', document: 'image.jpg', // Add the path to your image here. }) .then(function (instance) { console.log('PSPDFKit loaded', instance); }) .catch(function (error) { console.error(error.message); }); </script> </body> </html>
Serving Your Website
-
To serve the website, install the
servepackage:
npm install --global serve
-
Serve the contents of the current directory:
serve -l 8080 .
-

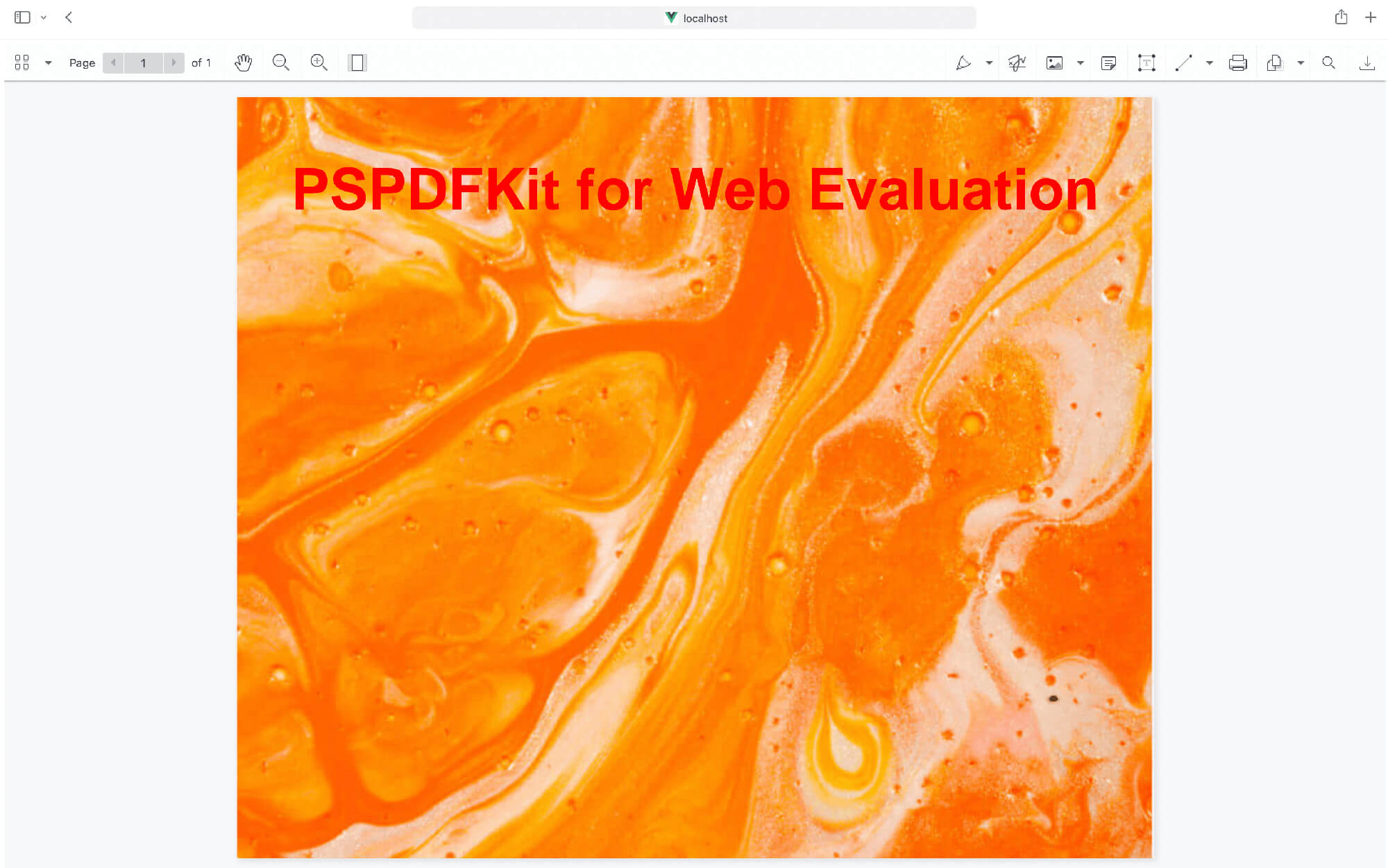

Navigate to http://localhost:8080 to view the website.
If you want to download PSPDFKit manually or integrate it as a module, you can check out our JavaScript getting started guide.
Adding Even More Capabilities
Once you’ve deployed your viewer, you can start customizing it to meet your specific requirements or easily add more capabilities. To help you get started, here are some of our most popular HTML5 guides:
- Adding annotations
- Editing documents
- Filling PDF forms
- Adding signatures to documents
- Real-time collaboration
- Redaction
- UI customization
Conclusion
You should now have our HTML5 image viewer up and running in your web application. If you hit any snags, don’t hesitate to reach out to our Support team for help.
You can also integrate our JavaScript image viewer using web frameworks like Angular, Vue.js, and React.js. To see a list of all web frameworks, start your free trial. Or, launch our demo to see our viewer in action.
